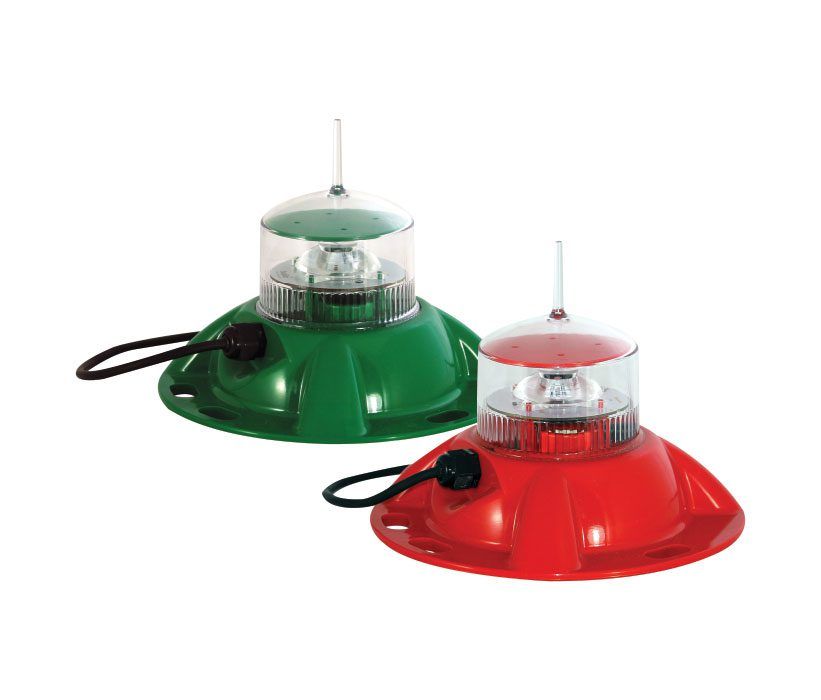

1-5NM Stand Alone Marine Lantern – Sealite SL-07
Single LED marine lantern rated for 1-5 nautical mile visibility. Operates on 12V power supply with polycarbonate construction. Supports 3 or 4 mounting hole configurations (6mm or 200mm spacing). IP68 waterproof rating with LED life expectancy exceeding 100,000 hours.
The SL-07 is a single LED marine lantern engineered for reliable operation in conjunction with existing power supplies. The unit delivers 1-5 nautical mile range with minimal maintenance requirements.
Mounting flexibility accommodates 3 or 4 hole configurations with 6mm or 200mm spacing. User-adjustable intensity settings and 16 IALA flash character options enable customization for specific navigational requirements. GPS synchronization capability supports coordinated multi-unit deployments.
APPLICATIONS
Primary use cases.
Barge and Vessel Navigation
Provides reliable navigation lighting for commercial and industrial marine vessels requiring 1-5NM visibility range
Harbor and Port Operations
Supports coordinated lighting systems in port facilities with GPS sync capability for synchronized multi-unit installations
Offshore Structures
Delivers durable, low-maintenance lighting for fixed and floating offshore installations with IP68 waterproof protection
TECHNICAL DATA
Complete specifications and tolerances for the 1-5NM Stand Alone Marine Lantern – Sealite SL-07.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | SL-07 / SL-07LB |
| Voltage Input | 12V DC |
| Material | Polycarbonate |
| Visibility Range | 1-5 Nautical Miles |
| IP Rating | IP68 |
| LED Life Expectancy | >100,000 hours |
| Mounting Holes | 3 or 4 holes (6mm or 200mm spacing) |
| Flash Characters | 16 adjustable IALA options |
| Control | IR programmable with GPS sync |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
International Association of Marine Aids to Navigation and Lighthouse Authorities
Compliant with IALA standards for marine navigation lighting
Conformité Européenne
Meets European Union safety and performance requirements
9001:2015
Quality management system certification
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What mounting options are available for the SL-07?
Can the SL-07 be synchronized with other lanterns?
What is the expected service life of the LED?
Is the SL-07 suitable for harsh marine environments?
How is intensity adjusted on the SL-07?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
