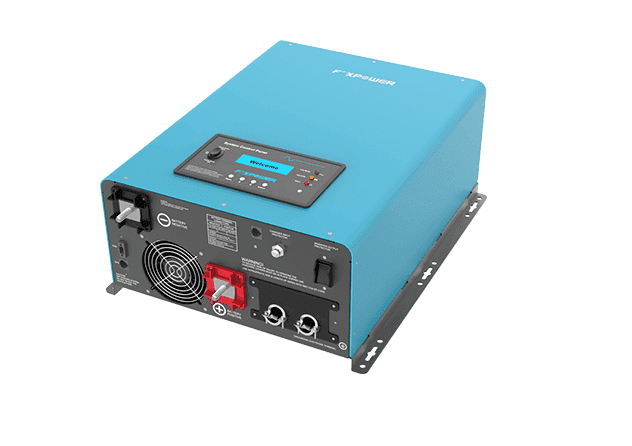

230V AC Power Inverter – FoxPower
DC to AC inverter converting 12–24V DC input to 230V AC pure sine wave output. Available in 600W to 4,000W ratings. Suitable for office, residential, automotive, marine, and industrial applications requiring stable AC power from DC sources.
The Sunsine 230Vac series delivers pure sine wave AC output from DC battery banks. High frequency topology enables compact design across the 600W to 4,000W power range. LED indicator display provides real-time operational status. Power saving mode reduces standby consumption. Optional remote control and N+X redundancy configuration available for multi-unit installations.
Key Features: High power density, LED status indication, selectable power saving mode, optional remote control interface, optional redundancy support for parallel operation.
APPLICATIONS
Primary use cases.
Office and Commercial
Backup power for IT infrastructure, telecommunications, and office equipment.
Residential
Solar battery systems, backup power supplies, and off-grid installations.
Automotive and Mobile
Vehicle-mounted power conversion for trucks, vans, and mobile service units.
Marine
Onboard DC-to-AC conversion for vessel electrical systems and auxiliary loads.
TECHNICAL DATA
Complete specifications and tolerances for the 230V AC Power Inverter – FoxPower.
| PARAMETER | SPECIFICATION |
|---|---|
| Product Code | SS0612E |
| Input Voltage | 12–24V DC |
| Output Voltage | 230V AC |
| Power Rating | 600–4,000W |
| Output Waveform | Pure Sine Wave |
| Dimensions | 270 × 160 × 70 mm |
| Weight | 2.5–8.8 kg (varies by power rating) |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
CE Marking
Complies with European Union safety and electromagnetic compatibility directives.
EN60950
Safety of information technology equipment standard.
UL-458
Standard for power conversion equipment and uninterruptible power supplies.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
