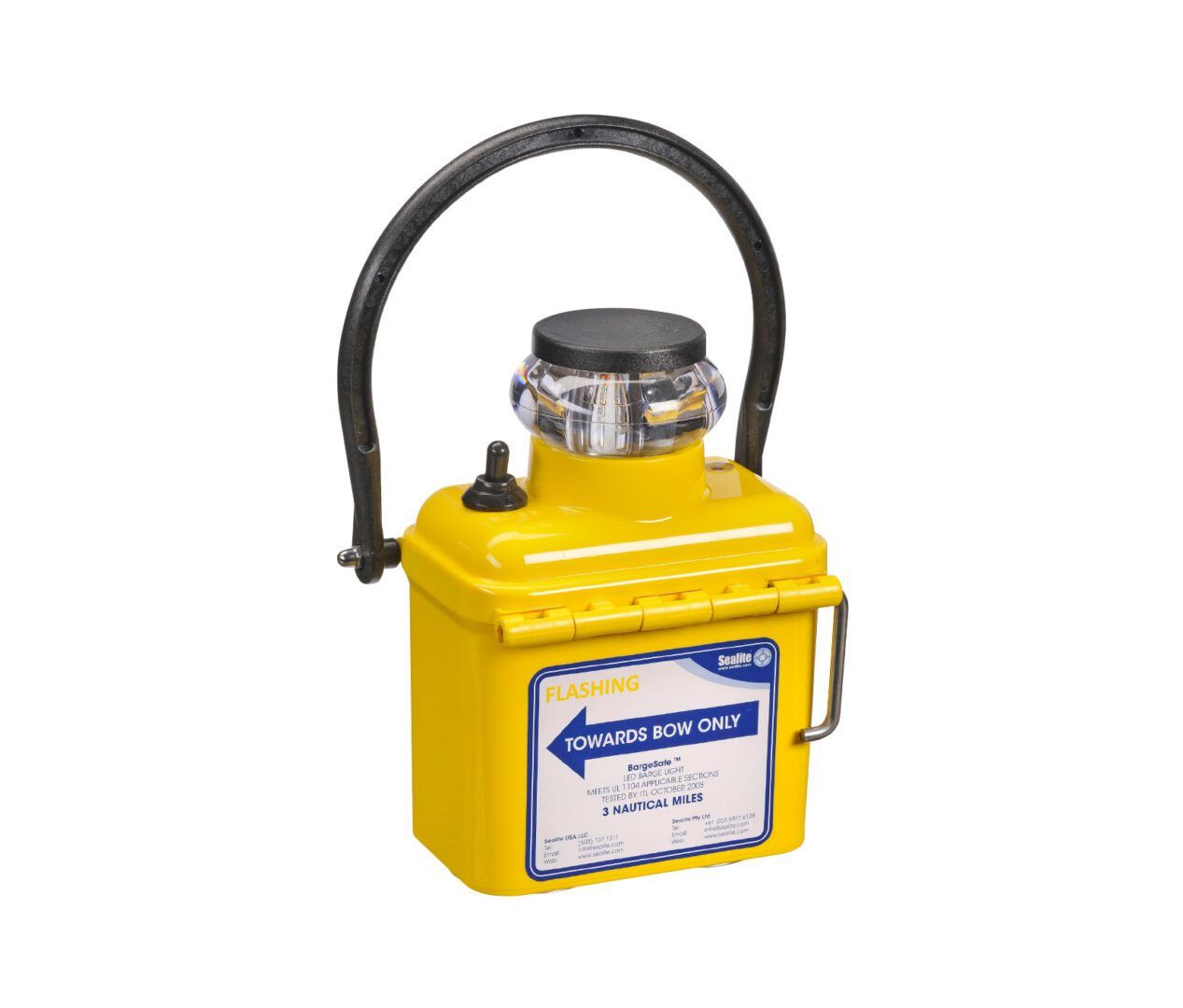

3NM Battery Powered Barge Light – Sealite BargeSafe
The BargeSafe is a 3 nautical mile battery powered barge light meeting UL 1104 and COLREG-72 standards. Self-contained design with user-replaceable battery and polycarbonate construction. LED technology delivers >100,000 hour life expectancy with operational duration exceeding 45 days per battery charge.
The BargeSafe from Sealite is a 3NM battery powered barge light designed to meet UL 1104 and COLREG-72 standards. The unit is completely self-contained with an accessible battery for field replacement.
Polycarbonate housing and high-intensity LED technology provide durability and efficiency. Low power consumption extends operational runtime to over 45 days between battery replacements. Available in red, yellow, green, and white casing for visual identification.
Features include manual on/off switch, automatic dusk activation, 3NM visible range, IP67 rating, and optional peep light configuration.
APPLICATIONS
Primary use cases.
Barge Operations
Stationary and mobile barge lighting for inland and coastal waterways
Marine Navigation
Temporary or permanent navigation marking for vessels and maritime infrastructure
TECHNICAL DATA
Complete specifications and tolerances for the 3NM Battery Powered Barge Light – Sealite BargeSafe.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | SL-BL-3-B1-[x]-[xx] |
| Voltage | 6V DC |
| Material | Polycarbonate |
| Visible Range | 3 Nautical Miles |
| Life Expectancy | >100,000 hours |
| IP Rating | IP67 |
| Battery Runtime | >45 days |
| Available Colors | Red, Yellow, Green, White |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
1104
Standard for marine navigation lights
COLREG-72
International Regulations for Preventing Collisions at Sea
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the visible range of the BargeSafe?
How long does the battery last?
Is the battery user-replaceable?
What standards does the BargeSafe meet?
What is the IP rating?
Is an optional peep light available?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
