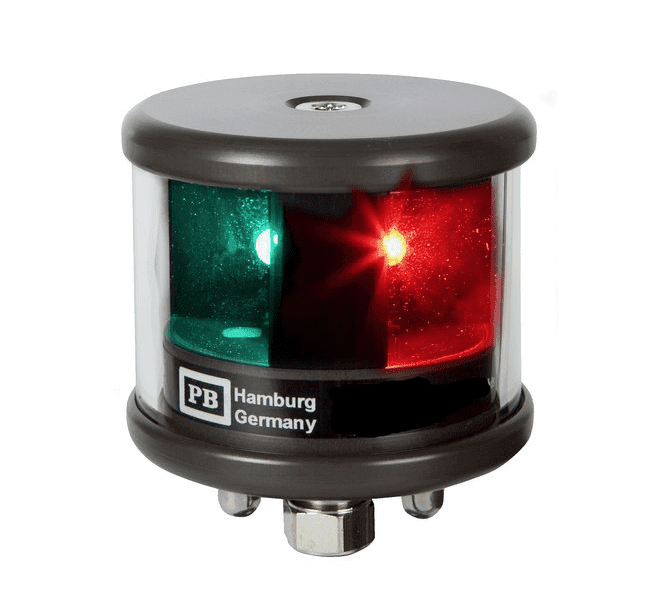

580 LED Navigation Light – Peters + Bey
Double-sided LED navigation light for vessels under 50 meters. German-engineered aluminum construction with IP67/68 sealing. Operational lifespan exceeds 20,000 hours with minimal maintenance.
The Peters + Bey 580 LED Navigation Light is rated for vessels under 50 meters in length. The housing is constructed from aluminum, manufactured in Germany, and engineered to withstand marine environments. The unit delivers a 3-nautical-mile visible range and operates on 12–24V DC supply.
Material properties include shock resistance, non-corrosive composition, non-magnetic construction, and seawater resistance. IP67/68 sealing protects internal components from water ingress. Expected service life exceeds 20,000 operating hours.
APPLICATIONS
Primary use cases.
Vessels Under 50 Meters
Suitable for commercial fishing vessels, workboats, tugboats, and small cargo vessels operating in coastal and offshore waters.
Retrofit Applications
Direct replacement for incandescent navigation lights on existing vessels, reducing power consumption and maintenance intervals.
TECHNICAL DATA
Complete specifications and tolerances for the 580 LED Navigation Light – Peters + Bey.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 580 Navigation Light |
| Vessel Size Rating | < 50m (124 ft) |
| Visible Range | 3 nautical miles |
| Voltage Input | 12–24V DC |
| Lamp Configuration | Single |
| IP Rating | IP67/68 |
| Housing Material | Aluminum |
| Service Life | > 20,000 hours |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
German Federal Maritime and Hydrographic Agency
Approval for use on German-flagged vessels and international maritime operations.
Germanischer Lloyd
Classification society certification for marine equipment.
Marine Equipment Directive
EU compliance for marine navigation equipment.
UL 1104
Underwriters Laboratories standard for marine navigation lights.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the visible range of the 580 LED Navigation Light?
What voltage options are available?
What is the IP sealing rating?
How long is the expected service life?
Is the housing corrosion-resistant?
