760 Navigation Light – Peters + Bey
Glass fiber reinforced polyamid navigation light for vessels exceeding 50 meters. Manufactured in Germany with IP56 sealing, available in single or double configuration with 24V, 115V, or 230V options. Rated for 3 nautical mile visibility.

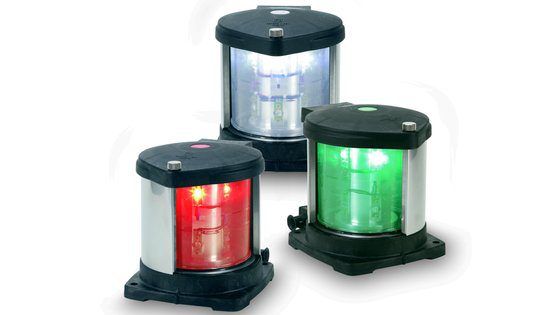

The Peters + Bey 760 Navigation Light is engineered for large vessel applications (>50m). The housing utilizes glass fiber reinforced polyamid construction, providing shock resistance and corrosion immunity in marine environments.
Configuration options include single or double lantern types with selectable voltage ratings (24V, 115V, 230V). The unit achieves IP56 sealing classification and carries approvals from BSH, GL, MED, and UL 1104.
Material properties: non-corrosive, non-magnetic, seawater resistant. Designed and manufactured in Germany.
APPLICATIONS
Primary use cases.
Large Commercial Vessels
Primary application for vessels exceeding 50 meters in length requiring certified navigation lighting systems
Offshore Support Vessels
Suitable for offshore operations requiring durable, corrosion-resistant navigation lighting
TECHNICAL DATA
Complete specifications and tolerances for the 760 Navigation Light – Peters + Bey.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | NL-1342-PB |
| Vessel Size | >50m (>164ft) |
| Visibility Range | 3 nautical miles |
| Voltage Options | 24V / 115V / 230V |
| Lantern Configuration | Single or Double |
| Housing Material | Glass fiber reinforced polyamid |
| IP Rating | IP56 |
| Corrosion Resistance | Seawater resistant, non-corrosive |
| Magnetic Properties | Non-magnetic |
| Shock Resistance | Yes |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
German Federal Maritime and Hydrographic Agency
Approval for navigation light systems on German-flagged vessels
Germanischer Lloyd
Classification society approval for marine equipment
Marine Equipment Directive
EU compliance for marine navigation equipment
1104
Standard for marine navigation lights
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What vessel sizes is the 760 rated for?
What voltage options are available?
What is the visibility range?
Can the 760 be configured as a double lantern?
What approvals does the 760 hold?
Is the housing corrosion-resistant?
