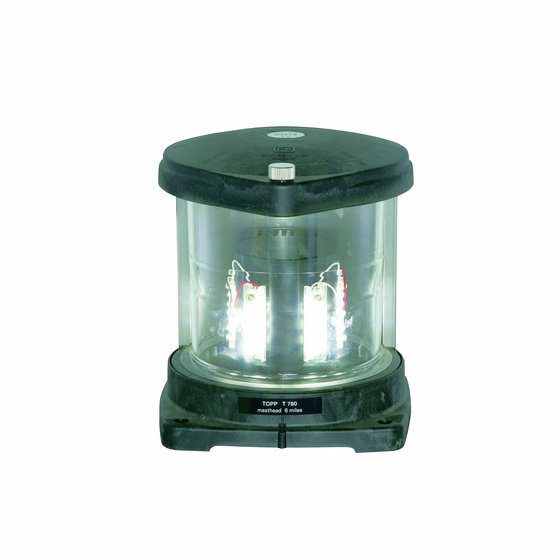

780 LED Navigation Light – Peters + Bey
LED navigation light for vessels exceeding 50 meters. Glass fiber reinforced polyamide construction, manufactured in Germany. Available in single and double configurations with voltage options of 24V, 115V, or 230V. Single unit rated for 50,000+ hour lifespan; double unit rated for 100,000+ hours.
The Peters + Bey 780 LED Navigation Light is engineered for vessels over 50 meters in length. The housing utilizes glass fiber reinforced polyamide construction, designed and manufactured in Germany.
Available in single and double lamp configurations. Selectable voltage supply: 24V, 115V, or 230V. LED technology delivers extended operational life: single unit 50,000+ hours; double unit 100,000+ hours.
Material properties: shock resistant, non-corrosive, non-magnetic, seawater resistant. IP56 sealing rating provides protection against water jets and dust ingress.
APPLICATIONS
Primary use cases.
Commercial Vessels
Suitable for cargo ships, tankers, and general commercial vessels exceeding 50 meters in length requiring certified navigation lighting.
Offshore Operations
Applicable to offshore support vessels and platform supply vessels operating in seawater environments.
TECHNICAL DATA
Complete specifications and tolerances for the 780 LED Navigation Light – Peters + Bey.
| PARAMETER | SPECIFICATION |
|---|---|
| Product Name | 780 Navigation Light |
| Vessel Size | >50m (>124ft) |
| Visibility Range | 3 nautical miles |
| Voltage Options | 24V / 115V / 230V |
| Lamp Configuration | Single / Double |
| Lamp Life (Single) | 50,000+ hours |
| Lamp Life (Double) | 100,000+ hours |
| Housing Material | Glass fiber reinforced polyamide |
| IP Rating | IP56 |
| Corrosion Resistance | Seawater resistant, non-corrosive |
| Magnetic Properties | Non-magnetic |
| Shock Resistance | Shock resistant |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
German Federal Maritime and Hydrographic Agency
Approval for use on German-flagged vessels and international maritime operations.
Germanischer Lloyd
Classification society approval for marine equipment.
Marine Equipment Directive
EU compliance for marine navigation equipment.
1104
UL standard for marine navigation lights.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What vessel sizes is the 780 suitable for?
What voltage options are available?
What is the operational lifespan of the LED lamps?
What is the visibility range of this navigation light?
Is the 780 suitable for seawater environments?
What certifications does the 780 hold?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
