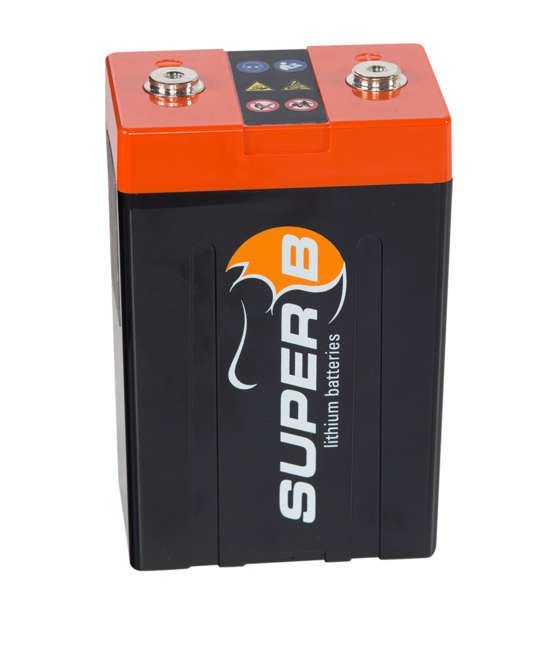

Andrena 12V 15Ah – LiFePO4 Battery
The Andrena 12V 15Ah is a lithium iron phosphate battery engineered for motorsports applications requiring 12V system compatibility in extreme environments. Cylindrical cell configuration with IP69 water rating and operational range from -30°C to 55°C.
The Andrena 12V 15Ah delivers 15Ah nominal capacity at 12.8V nominal voltage. LiFePO4 chemistry provides over 1,000 charge-discharge cycles with self-discharge below 3% per month. Compact dimensions (120 x 82 x 181 mm) and 2.4 kg weight enable integration into standard rally casing configurations.
IP69 water rating ensures operation across motorsport environments including high-pressure wash conditions. Fast charging capability and cylindrical cell architecture support demanding duty cycles in rally, circuit, and off-road applications.
APPLICATIONS
Primary use cases.
Rally Motorsports
Compact form factor and extreme temperature tolerance (-30°C to 55°C) support rally vehicle electrical systems.
Circuit Racing
High cycle count (1,000+ cycles) and fast charging enable repeated race weekend deployment.
Off-Road Applications
IP69 water rating and robust cylindrical construction withstand high-pressure wash and mud exposure.
TECHNICAL DATA
Complete specifications and tolerances for the Andrena 12V 15Ah – LiFePO4 Battery.
| PARAMETER | SPECIFICATION |
|---|---|
| Product | Andrena 12V 15Ah |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 15Ah |
| Water Rating | IP69 |
| Operating Temperature | -30°C to +55°C |
| Charge-Discharge Cycles | >1,000 |
| Self-Discharge Rate | <3% per month |
| Dimensions | 120 x 82 x 181 mm |
| Weight | 2.4 kg |
| Cell Configuration | Cylindrical |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
European Conformity
Product meets European Union safety and performance standards.
UN 38.3
Lithium battery transport classification and safety requirements for air and maritime shipment.
UL 1642 (Cells)
Lithium battery cell safety standard covering electrical, thermal, and mechanical performance.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the cycle life of the Andrena 12V 15Ah?
Can this battery operate in cold environments?
What does IP69 water rating mean?
How long does the battery hold charge when not in use?
Is fast charging supported?
What certifications does this battery carry?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
