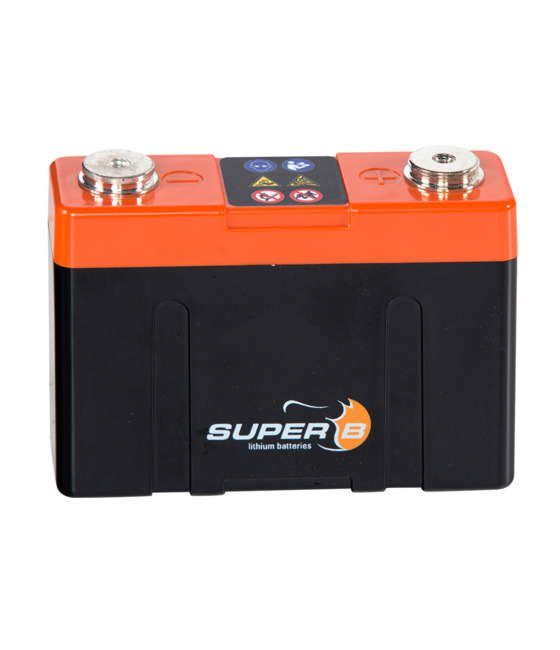

Andrena 12V 2.5Ah – LiFePO4 Battery
The Andrena 12V 2.5Ah is a lithium iron phosphate battery engineered for motorsports applications. Built in standard rally casing, it delivers 2.5Ah capacity at 12.8V nominal with IP69 water rating and operational range from -30°C to 55°C. Supports over 1,000 charge cycles with self-discharge below 3% monthly.
The Andrena 12V 2.5Ah is a lithium iron phosphate battery developed for motorsports applications requiring reliable performance in extreme environments. The cylindrical LiFePO4 cell architecture is housed in standard rally casing, compatible with 12V electrical systems.
Key performance metrics include self-discharge rate below 3% per month, cycle life exceeding 1,000 charge-discharge cycles, and operational temperature range from -30°C to 55°C. The compact form factor (114 x 32 x 84 mm) and 0.46 kg weight enable integration into space-constrained motorsport installations.
APPLICATIONS
Primary use cases.
Motorsports
Primary application for rally vehicles and motorsport systems requiring lightweight, high-cycle-life power sources
12V Electrical Systems
Compatible with standard 12V systems in extreme temperature and high-vibration environments
TECHNICAL DATA
Complete specifications and tolerances for the Andrena 12V 2.5Ah – LiFePO4 Battery.
| PARAMETER | SPECIFICATION |
|---|---|
| Product | Andrena 12V 2.5Ah |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 2.5Ah |
| Water Rating | IP69 |
| Dimensions | 114 x 32 x 84 mm |
| Weight | 0.46 kg |
| Operating Temperature | -30°C to 55°C |
| Self-Discharge Rate | <3% per month |
| Charge Cycles | >1,000 cycles |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
CE Marking
Conforms to European Union safety and performance standards
UN 38.3
Meets United Nations lithium battery transport safety requirements
UL 1642
Cells certified to UL 1642 standard for lithium battery safety
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the nominal voltage output?
What is the cycle life?
What is the self-discharge rate?
What temperature range is supported?
What is the water protection rating?
What certifications does this battery hold?
