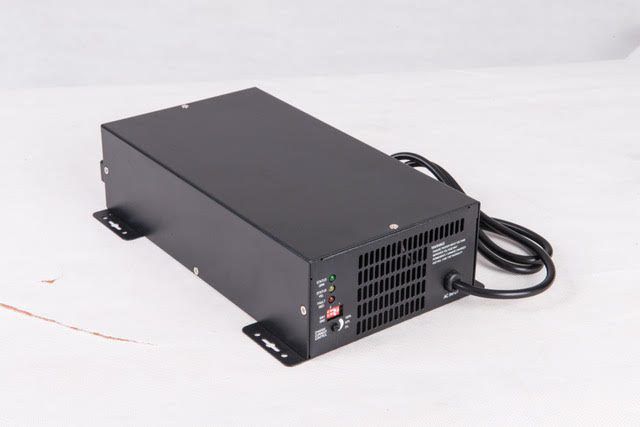

BRITMAR 150/75A Battery Charger
AC-DC battery charger for marine environments. Charges 12V and 24V battery banks within a single unit. Supports Lead Acid, Gel, AGM, and LiFePO4 battery types with selectable charge rates from 20% to 100%.
The Britmar Marine battery charger is engineered for marine applications requiring dual-voltage charging capability. The BC212L model accommodates both 12V and 24V battery banks in a single unit, eliminating the need for separate chargers.
Charge rate adjustment ranges from 20% to 100%, allowing operators to optimize charging speed based on battery condition and operational requirements. The unit includes a drip shield for splash protection, LED fault indicator for diagnostics, and optional temperature sensor integration for enhanced battery management.
RS232 NEMA output enables remote monitoring and integration with vessel management systems. The charger is UL458 and CSA certified, backed by a 2-year warranty.
APPLICATIONS
Primary use cases.
Marine Vessels
Primary application for dual-voltage battery charging on commercial and recreational vessels requiring reliable shore power charging systems.
Backup Power Systems
Suitable for stationary battery bank charging in marine facilities and dock-side power management.
TECHNICAL DATA
Complete specifications and tolerances for the BRITMAR 150/75A Battery Charger.
| PARAMETER | SPECIFICATION |
|---|---|
| Model | BC212L |
| Output Voltage | 12V – 24V DC |
| Output Current | 30–150A (12V) / 15–75A (24V) |
| Input Voltage | 70–94V AC (50% derated) |
| Input Frequency | 40–70 Hz |
| Input Current | < 18A AC |
| Charge Rate Adjustment | 20%–100% selectable |
| Battery Compatibility | Lead Acid, Gel, AGM, LiFePO4 |
| Weight | 3.5 kg (7.7 lbs) |
| Dimensions (L × W × H) | 425 × 167 × 255 mm |
| Protection | Drip shield included |
| Monitoring | LED fault indicator, RS232 NEMA output |
| Optional Features | Temperature sensor |
| Warranty | 2 years |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
458
Safety standard for battery chargers
Certification
Canadian Standards Association approval
TECHNICAL FAQ
Common specifications and regulatory inquiries.
Can this charger handle both 12V and 24V batteries?
What battery chemistries are supported?
How is charge rate controlled?
What input power is required?
Does the charger include monitoring capabilities?
Is the charger protected against splash?
What certifications does this charger hold?
