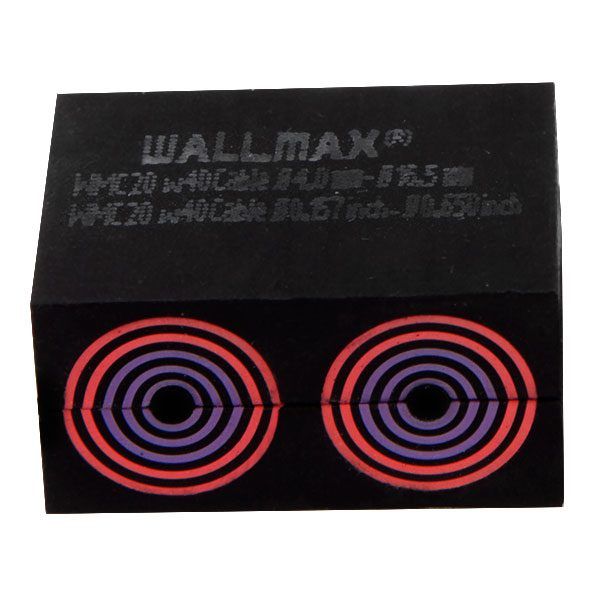

Compact Module – WallMax Cable Transits
The WMC Module is a compact cable transit designed with a thin frame and adjustable central opening. Multi-layer construction allows peeling of individual layers to accommodate various cable diameters. Lightweight design optimizes packing efficiency in confined spaces and integrates with WallMax mini and mini compact systems.
The WMC Module accommodates cable passage through an adjustable central opening. Each half comprises separate layers that peel away to fit different diameters, enabling flexible sizing without tool requirements.
The compact version reduces weight compared to standard modules while maintaining structural integrity. Single and multiple cable openings are available. This module protects cables and pipes from external environmental hazards including moisture, UV exposure, and mechanical damage.
Key advantages include 30 mm depth for space-constrained installations, EPDM rubber construction for chemical and temperature resistance, and compatibility with existing WallMax product lines for modular system expansion.
APPLICATIONS
Primary use cases.
Marine and Offshore
Cable protection in harsh saltwater environments where corrosion and UV degradation present ongoing risks.
Industrial Facilities
Pipe and cable routing through bulkheads and walls in manufacturing, processing, and utility installations.
Confined Space Applications
Tight clearance installations where standard modules exceed available depth or weight constraints.
TECHNICAL DATA
Complete specifications and tolerances for the Compact Module – WallMax Cable Transits.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 3000 XXXX |
| Module Depth | 30 mm |
| Dimensions (Range) | 15×15 – 60×60 mm |
| Weight (Range) | 0.008–0.127 kg |
| Cable Diameter Range | 2.5–54 mm |
| Material | EPDM Rubber |
| Configuration | Multi-layer peelable design |
