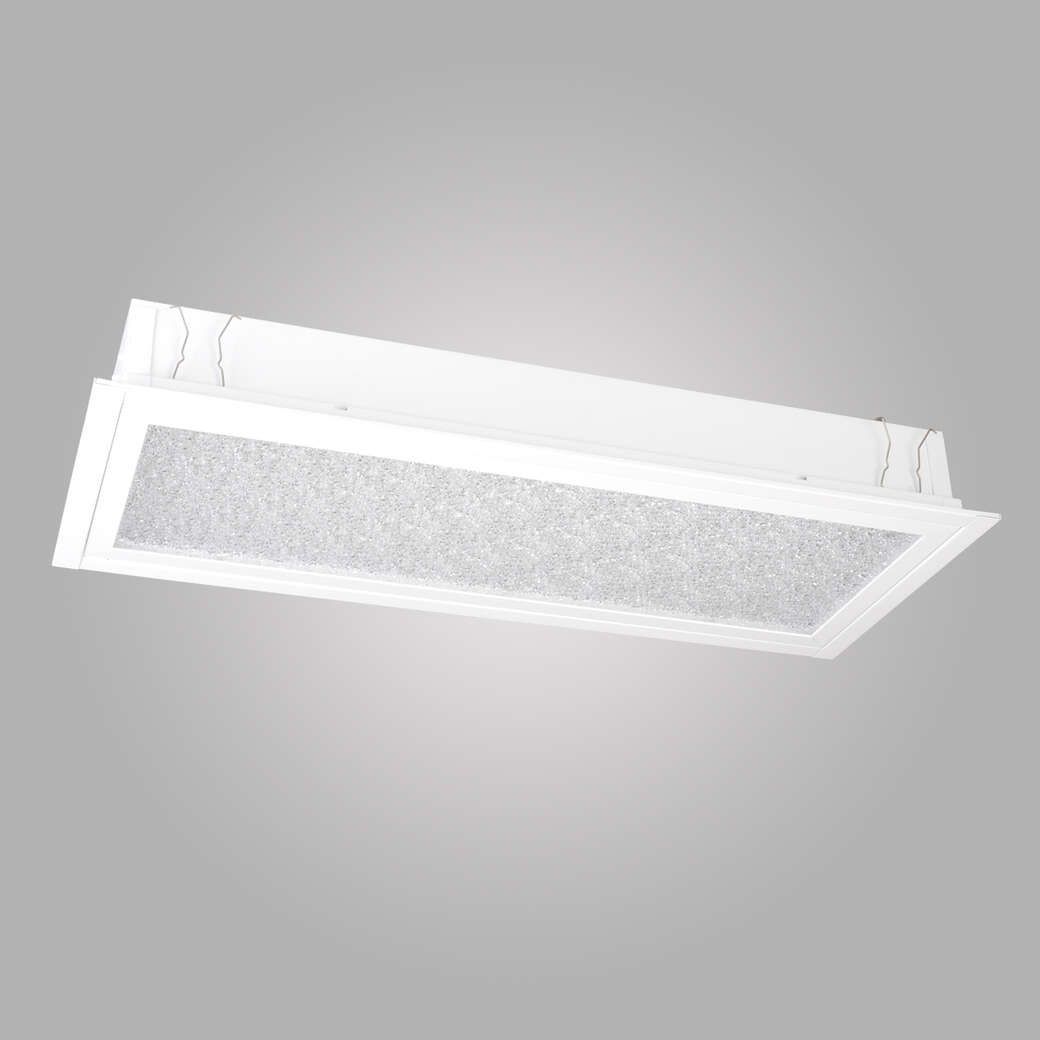

DE29 – Fluorescent Indoor Ceiling Luminaire
Recessed ceiling luminaire for accommodation areas including passageways, cabins, and dining rooms. Dual fluorescent tube configuration with zinc-coated steel housing. Available in multiple wattages and voltages with optional IP44 rating, emergency battery backup, and electronic ballast.
The DE29 is a recessed indoor ceiling luminaire engineered for accommodation spaces. The fixture features a zinc-coated steel housing with a white steel reflector and accommodates two fluorescent tubes. Standard configuration supports 2×18W or 2×32W operation at 230V, 50-60Hz.
The luminaire includes four mounting brackets and two cable entries with flexible, heat-resistant wiring. IP20 rating is standard; IP44 upgrade available. Optional emergency battery backup and electronic ballast can be specified. Custom diffusers and louvers are available upon request.
APPLICATIONS
Primary use cases.
Accommodation Spaces
Passageways, cabins, dining rooms, and other indoor accommodation areas requiring recessed ceiling-mounted lighting.
Indoor Lighting Applications
General-purpose indoor illumination in marine and land-based accommodation environments.
TECHNICAL DATA
Complete specifications and tolerances for the DE29 – Fluorescent Indoor Ceiling Luminaire.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 5111 0054 00-xx / 5111 0059 00-xx |
| Voltage | 230V AC |
| Wattage | 2×18W or 2×32W |
| Frequency | 50-60Hz |
| Light Source | Fluorescent |
| Housing Material | Zinc-coated steel |
| IP Rating | IP20 standard / IP44 optional |
| Reflector | White steel |
| Mounting | 4 brackets, recessed installation |
| Cable Entries | 2 entries with flexible, heat-resistant wiring |
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What IP ratings are available for the DE29?
Can the DE29 be equipped with emergency backup lighting?
What wattage options are offered?
Are custom diffusers or louvers available?
What is the housing material?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
