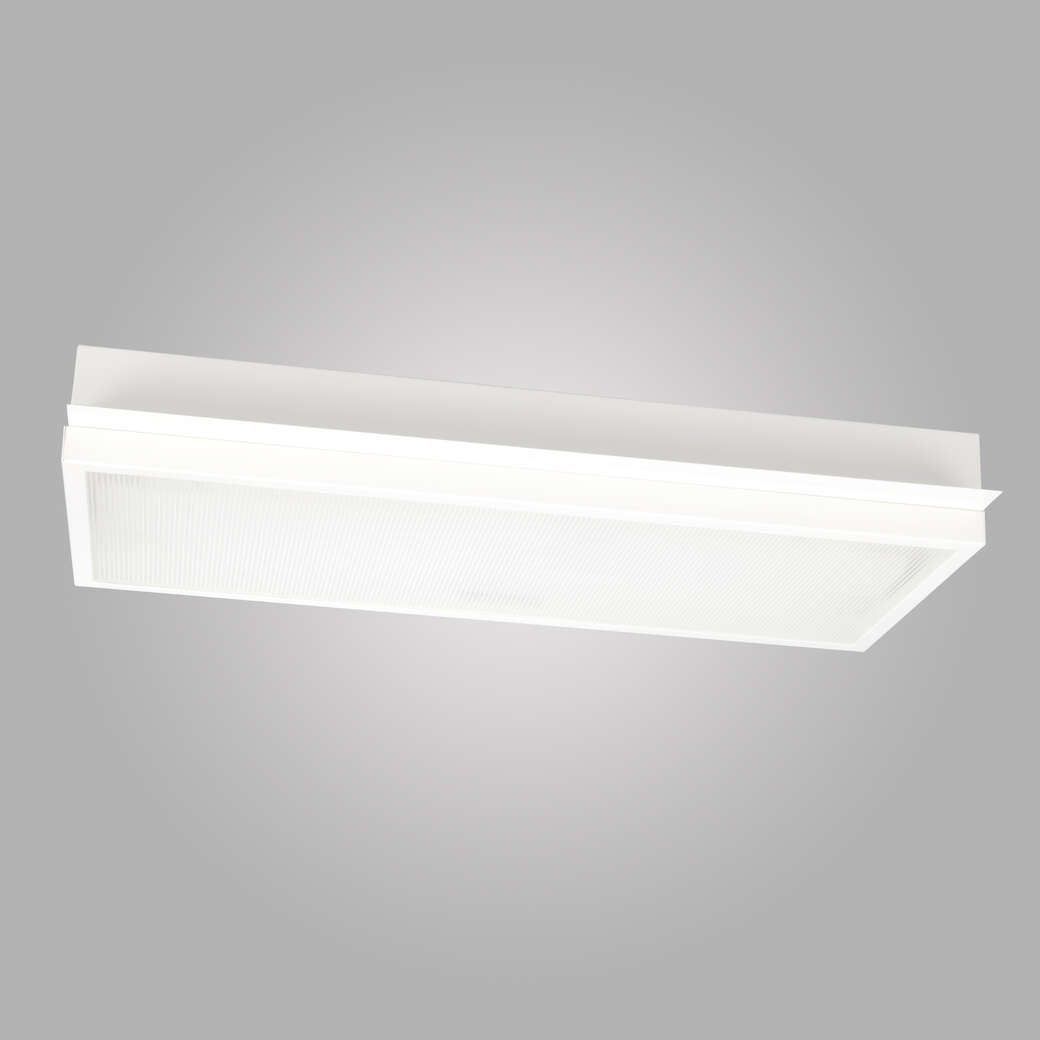

DE95DCC – Indoor Ceiling Luminaire
Recessed ceiling luminaire for panel ceiling installation in accommodation areas. Dual-lamp configuration supports 2x18W or 2x36W fluorescent or LED sources. Galvanized steel housing with IP20 or IP44 protection ratings. Dimmable with optional emergency battery backup.
The DE95DCC is a recessed indoor ceiling luminaire engineered for panel ceiling systems in accommodation spaces including passageways, cabins, and dining areas. The fixture features a galvanized steel housing with white steel reflector and accommodates dual fluorescent or LED lamp configurations.
Standard configuration includes four mounting brackets, two cable entries, and flexible heat-resistant wiring. Dimmable operation is supported. Optional emergency battery backup and electronic ballast are available. Custom wattages, voltages, diffusers, and louvers can be specified upon request.
APPLICATIONS
Primary use cases.
Accommodation Spaces
Passageways, cabins, dining rooms, and other interior areas requiring recessed panel ceiling lighting.
Indoor Lighting Applications
General illumination in enclosed spaces with panel ceiling infrastructure.
TECHNICAL DATA
Complete specifications and tolerances for the DE95DCC – Indoor Ceiling Luminaire.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 5111 0094 00-xx / 5111 0095 00-xx |
| Voltage | 220V / 230V AC |
| Frequency | 50–60 Hz |
| Wattage | 20W – 36W (dual lamp) |
| Light Source | Fluorescent or LED |
| Housing Material | Galvanized steel |
| IP Rating | IP20 or IP44 |
| Reflector | White steel |
| Mounting | 4 brackets on side rails |
| Cable Entries | 2 |
| Dimmable | Yes |
| Optional Features | Emergency battery backup, electronic ballast |
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What mounting system does the DE95DCC use?
Can the DE95DCC be dimmed?
What IP protection ratings are available?
Are emergency backup options available?
What lamp types are compatible?
