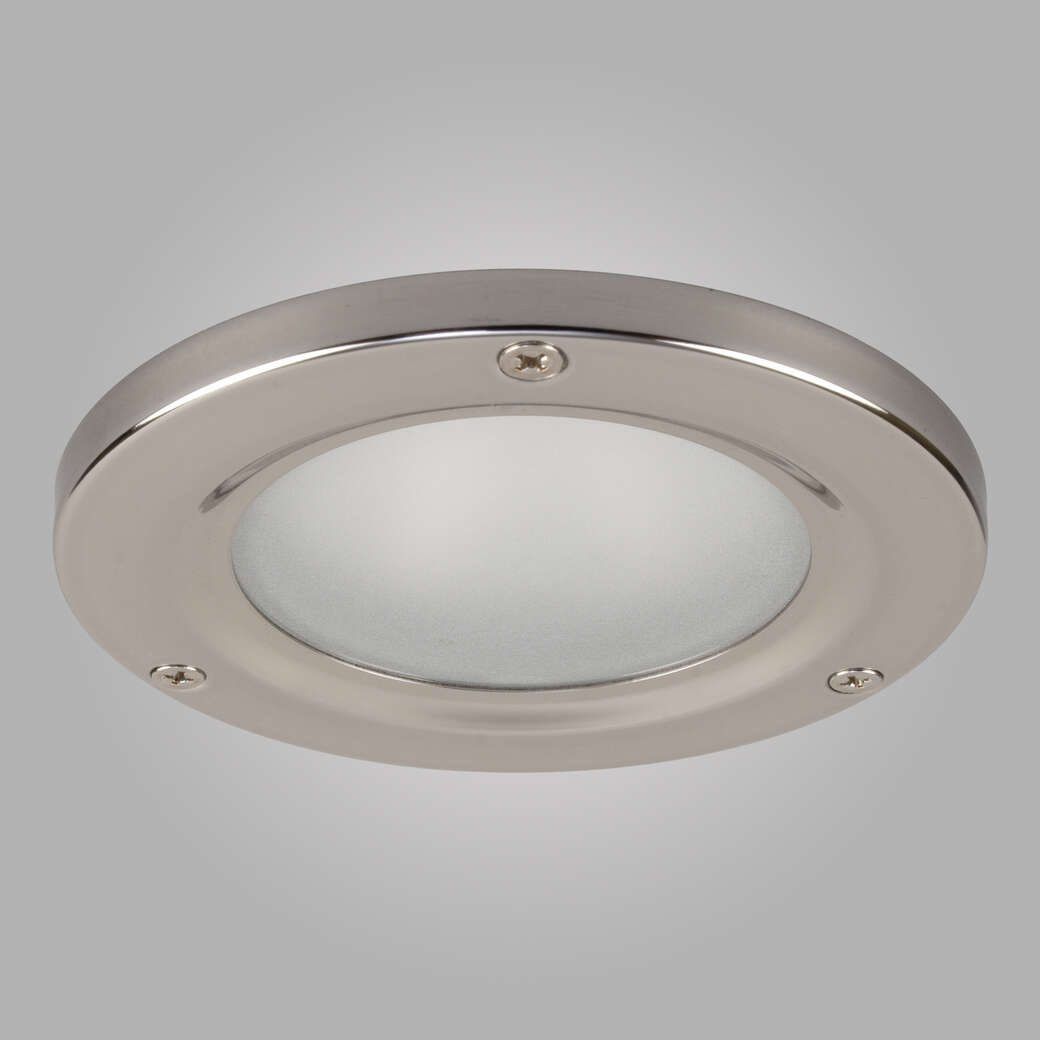

DL67 – Watertight Downlight
The DL67 is a watertight downlight for indoor and outdoor decorative lighting applications. IP65-rated stainless steel housing with adjustable mounting and brass cable gland accommodation for 4–8 mm cables. Operates at 230 V AC, 50–60 Hz with 35 W power consumption.
The DL67 watertight downlight provides IP65 protection for decorative lighting in indoor and outdoor environments. The fixture features a glossy stainless steel housing with three mounting holes for secure installation. Suitable for waiting rooms, passageways, dining areas, and other applications requiring moisture resistance.
Key specifications: 230 V AC supply, 50–60 Hz operation, 35 W power draw, MR16 LED light source, stainless steel construction, and brass cable gland rated for 4–8 mm cables.
APPLICATIONS
Primary use cases.
Indoor Decorative Lighting
Waiting rooms, passageways, dining areas, and corridors requiring moisture-resistant fixtures.
Outdoor Applications
Exterior installations where IP65 water and dust protection is required.
TECHNICAL DATA
Complete specifications and tolerances for the DL67 – Watertight Downlight.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 5301010300-061 |
| Voltage | 230 V AC |
| Frequency | 50–60 Hz |
| Power Consumption | 35 W |
| Light Source | MR16 LED |
| Housing Material | Stainless Steel |
| Finish | Glossy |
| Protection Rating | IP65 |
| Mounting Holes | 3 |
| Cable Gland | Brass, 4–8 mm cable accommodation |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP65
Dust-tight and water jet resistant. Suitable for wet environments and outdoor installations.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the IP rating of the DL67?
What voltage does the DL67 require?
What cable sizes does the brass cable gland accommodate?
What light source does the DL67 use?
What material is the DL67 housing constructed from?
