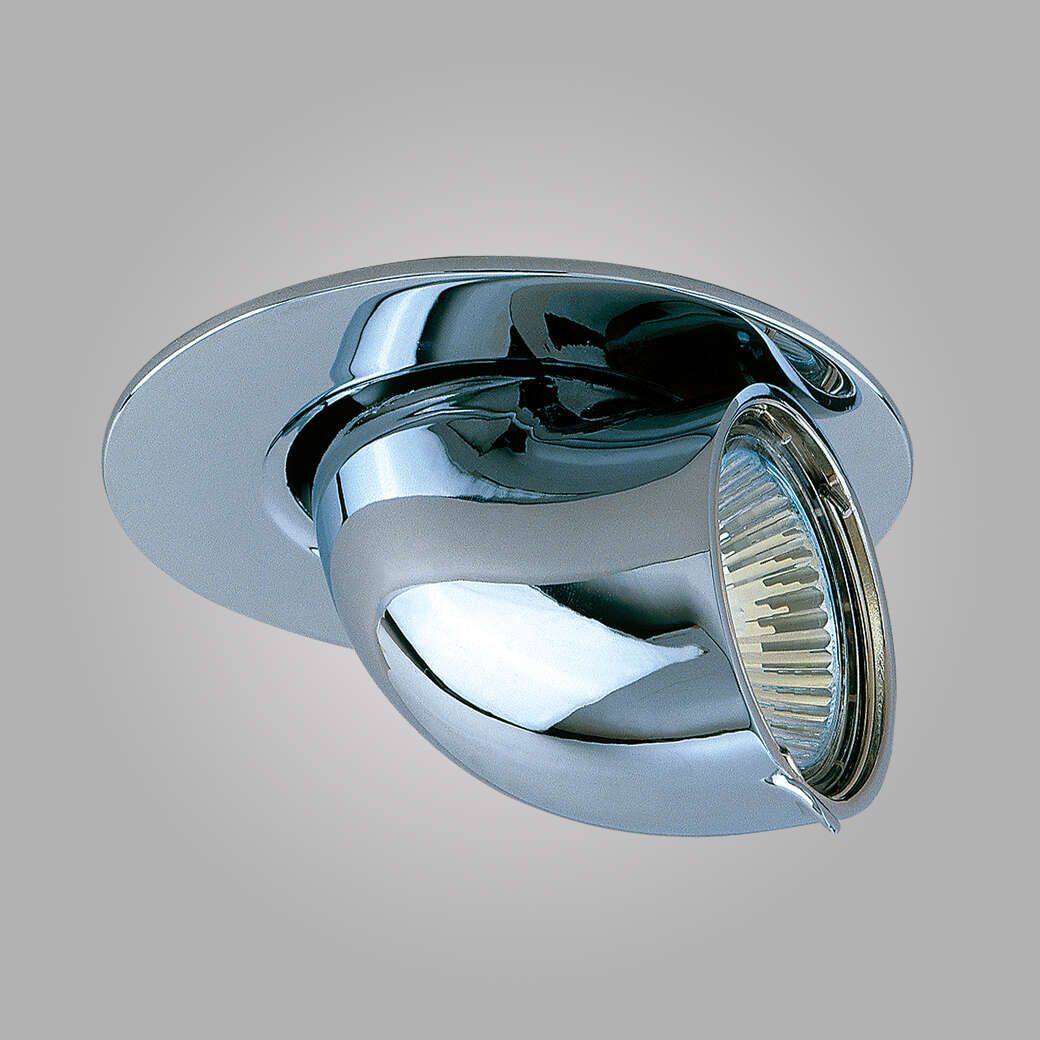

DL90E – Wall Washer Downlight
The DL90E is an adjustable downlight washer for decorative indoor lighting applications. Available in Halogen or LED configurations, it suits waiting rooms, passageways, and dining areas. Features triangle spring ceiling mounting, IP20 protection, and dimmable operation with trailing-edge phase dimmers.
The DL90E delivers adjustable wall-washing downlight functionality with steel housing construction. Selectable light sources (Halogen or LED) accommodate various application requirements and energy profiles.
Finish options include white, chrome, nickel brushed, and gold. Triangle spring mounting system enables straightforward ceiling installation. Dimmable via trailing-edge phase dimmers for lighting control flexibility.
APPLICATIONS
Primary use cases.
Indoor Commercial Spaces
Waiting rooms, passageways, dining areas, and other interior environments requiring adjustable decorative downlight solutions.
TECHNICAL DATA
Complete specifications and tolerances for the DL90E – Wall Washer Downlight.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 5302014200-xxx |
| Voltage | 220-240 V AC |
| Frequency | 50-60 Hz |
| Wattage | 35 W |
| Light Source | Halogen / LED |
| Housing Material | Steel |
| IP Rating | IP20 |
| Mounting | Triangle spring ceiling mount |
| Dimming | Trailing-edge phase dimmers |
| Finish Options | White, Chrome, Nickel Brushed, Gold |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP20
Protection against solid objects greater than 12mm and water spray at any angle.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What light sources are available for the DL90E?
How is the DL90E mounted?
Can the DL90E be dimmed?
What is the IP protection rating?
