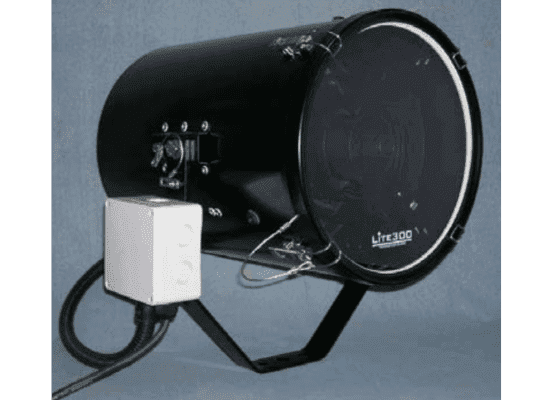

Francis Architectural Lighting – LH300
The Francis LH300 is a 575W single end metal halide architectural light designed for applications where standard floodlights cannot deliver sufficient intensity. Suitable for illuminating statues, spires, and garden features with IP66 weatherproof sealing and external lamp focus adjustment.
The LH300 provides focused illumination for architectural accent lighting where conventional floodlights lack sufficient output. The axially mounted metal halide source delivers concentrated light via a parabolic formed deep dish aluminium reflector.
Optional reeded glass collimation produces uniform floodlight distribution. Spill rings minimize unwanted stray light and glare. External focus adjustment enables field optimization. Toughened front glass and IP66 sealing provide weather resistance for outdoor installations.
Supplied with stainless steel security bracket and safety cable. Suitable for permanent or temporary architectural lighting applications.
APPLICATIONS
Primary use cases.
Architectural Accent Lighting
Illumination of building facades, statues, spires, and sculptural garden features requiring focused high-intensity light output.
Garden and Landscape Lighting
Accent lighting for landscape features where standard floodlights provide insufficient intensity or beam control.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Architectural Lighting – LH300.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A2859 |
| Voltage | 240V |
| Wattage | 575W |
| Lamp Type | Single End Metal Halide |
| Lamp Life | 3,000 hours |
| Beam Range | 3,412 m |
| IP Rating | IP66 |
| Housing Material | Stainless steel |
| Front Glass | Toughened |
| Reflector | Parabolic formed deep dish aluminium |
| Focus Adjustment | External |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66
Weatherproof sealing for outdoor exposure. Dust-tight and protected against high-pressure water jets.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the effective illumination range of the LH300?
Can the LH300 be used with collimating optics?
What weatherproofing is provided?
Is field focus adjustment available?
What accessories are included?
