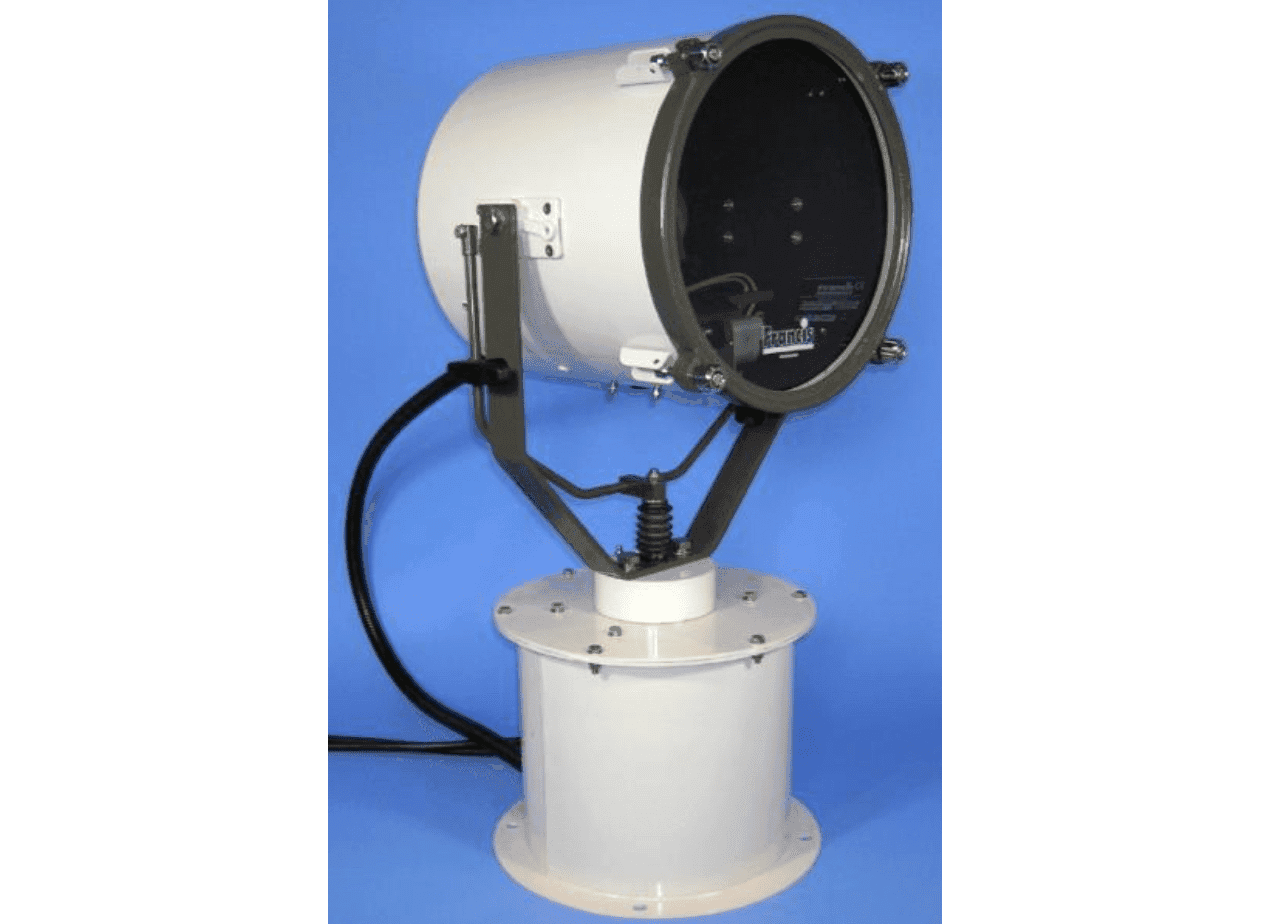

Francis Searchlight FR300RC
Tungsten halogen remote-controlled searchlight with variable speed control. Features joystick control panel with membrane and LED technology, RS485 interface, and auto home position setting. Mid-range compact unit suitable for navigation applications.
The FR300RC is a remote-controlled searchlight designed for marine navigation. The unit incorporates variable speed control, a modern joystick control panel with membrane and LED technology, RS485 interface capability, and automatic home position setting.
Construction uses marine-grade materials and fixings throughout. The parabolic formed glass reflector with toughened front glass and external lamp focus adjustment provides reliable optical performance. A light shield minimizes stray light and glare.
APPLICATIONS
Primary use cases.
Marine Navigation
Remote-controlled searchlight for vessel navigation and positioning applications requiring variable intensity control and extended operational range.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlight FR300RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A2808 / A2810 |
| Application | Navigation |
| Voltage | 24V / 115V / 230V |
| Wattage | 150W / 250W / 1,000W |
| Lamp Life | 1,000 hours |
| Effective Range | 1,000 meters |
| Pan Rotation | 385° |
| Operating Temperature | -50°C |
| Material | Marine grade |
| Control Interface | RS485 |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
Sealing Protection
IP56 (searchlight body), IP66 (gearbox)
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What control options are available for the FR300RC?
What voltage options are available?
What is the effective range of the searchlight?
What environmental protection does the unit provide?
