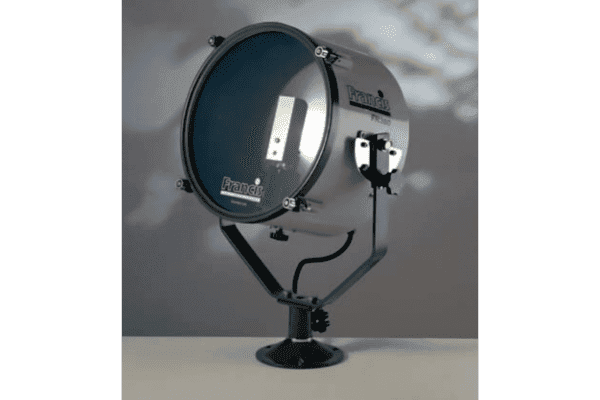

Francis Searchlight FR380
Manually controlled searchlight for large vessels, security installations, and maritime applications. IP56-rated (IP66 gearbox) with parabolic glass reflector, external lamp focus adjustment, and 450° pan rotation. Operates across 24V, 115V, and 230V configurations with lamp life of 1,000 hours and effective range to 1,300 meters.
The Francis FR380 searchlight is engineered for demanding maritime and terrestrial security environments. Construction uses marine-grade materials and fixings throughout, with toughened front glass and integrated light shield to minimize stray light and glare.
Key operational features include external lamp focus adjustment, parabolic glass reflector for concentrated beam output, and 450° pan rotation capability. The unit maintains IP56 sealing protection (searchlight body) and IP66 protection (gearbox assembly).
APPLICATIONS
Primary use cases.
Large Vessel Operations
Suitable for passenger ferries, cargo ferries, and container ships requiring high-intensity illumination for navigation and deck operations.
Security and Surveillance
Deployed on guard towers, perimeter security installations, and fixed-position surveillance applications requiring extended range illumination.
Maritime Search and Rescue
Effective range to 1,300 meters supports search operations and emergency response on open water.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlight FR380.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A2820 / A2822 |
| Voltage Input | 24V / 115V / 230V |
| Wattage | 150W / 250W / 1,000W |
| Lamp Type | Tungsten Halogen |
| Lamp Life | 1,000 hours |
| Effective Range | 1,300 meters |
| Pan Rotation | 450° |
| Operating Temperature | -50°C minimum |
| Sealing Protection (Searchlight) | IP56 |
| Sealing Protection (Gearbox) | IP66 |
| Reflector | Parabolic glass |
| Front Glass | Toughened |
| Construction Material | Marine grade |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP56 / IP66
Searchlight body rated IP56 for dust and water jet protection. Gearbox assembly rated IP66 for complete dust protection and high-pressure water jet resistance.
Marine Grade
All structural and fastening components constructed from marine-grade materials for corrosion resistance in salt-water and high-humidity environments.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What voltage options are available for the FR380?
What is the effective illumination range?
Is the FR380 suitable for saltwater environments?
What is the lamp replacement interval?
Can the lamp focus be adjusted in the field?
What is the minimum operating temperature?
