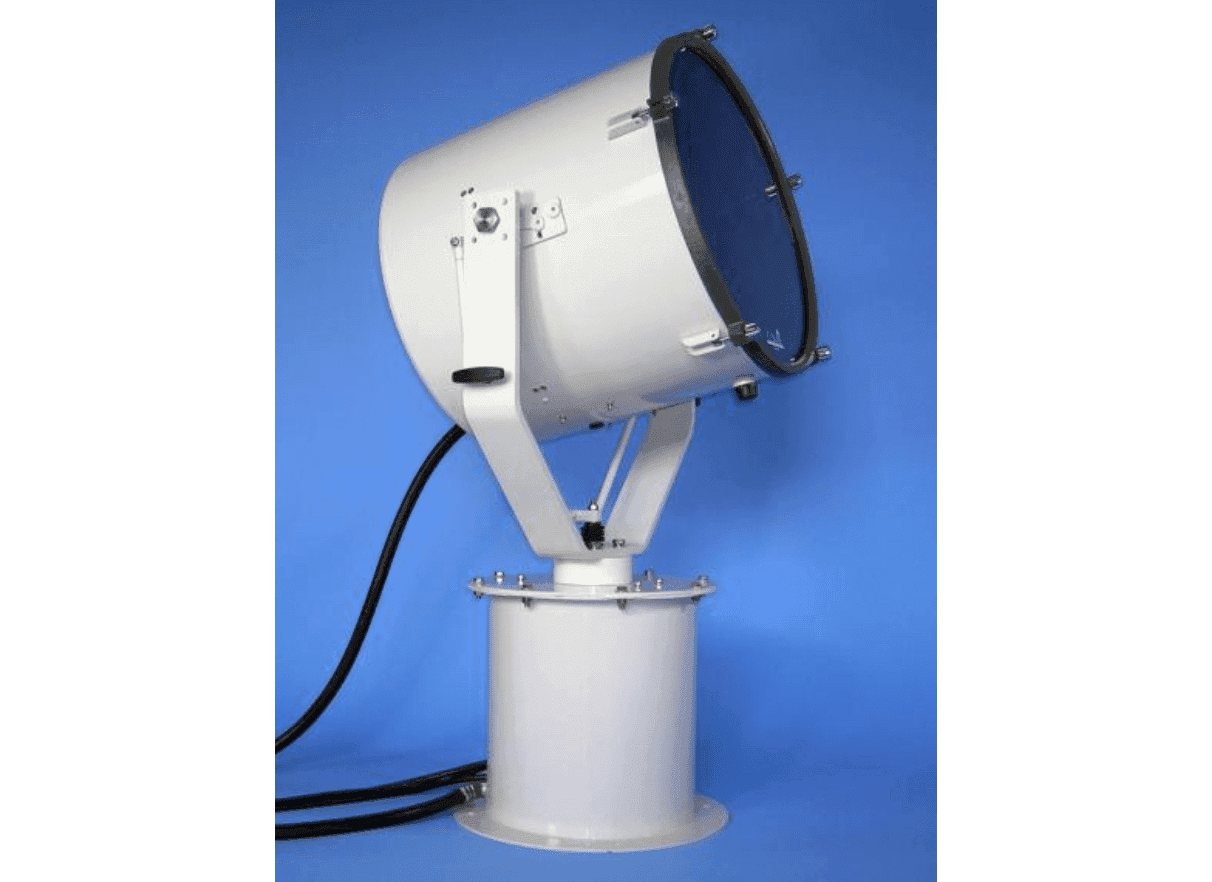

Francis Searchlight FR480RC
Tungsten halogen remote-controlled searchlight for marine patrol and general applications. Features variable speed control, joystick panel with membrane and LED technology, and RS485 bus communication protocol (FBUS). Compact design rated IP66 with 1,500 m effective range.
The FR480RC is a high-quality, large-range compact remote-control searchlight designed for patrol craft, custom vessels, and general marine applications. The unit incorporates variable speed control and a modern joystick control panel utilizing membrane and LED technology.
Control is managed via the Francis bus (FBUS), a custom communication protocol based on RS485 two-wire bi-directional communication. This system provides a simple, reliable link between searchlights and control panels.
Construction uses marine-grade materials and fixings throughout. The searchlight features a parabolic glass reflector with toughened front glass, external lamp focus adjustment, and a light shield to minimize stray light and glare. Pan rotation capability is 385°.
APPLICATIONS
Primary use cases.
Patrol Craft
Compact remote-controlled design suitable for rapid deployment and directional light control on patrol vessels.
Custom Vessels
Marine-grade construction and variable speed control accommodate integration into specialized vessel configurations.
General Marine Applications
1,500 m effective range and robust sealing make the unit suitable for general marine search and navigation lighting.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlight FR480RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7030 / A7031 |
| Voltage | 115 V / 230 V |
| Wattage | 1,000 W / 2,000 W |
| Lamp Life | 750 hrs |
| Effective Range | 1,500 m |
| Pan Rotation | 385° |
| Operating Temperature | -50°C |
| Sealing Protection | IP66 (searchlight and gearbox) |
| Material | Marine grade |
| Control Protocol | FBUS (RS485 bi-directional) |
| Reflector | Parabolic glass |
| Front Glass | Toughened |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66 Rating
Searchlight and gearbox sealed to IP66 protection standard for marine environments.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What communication protocol does the FR480RC use?
What is the effective range of the FR480RC?
What voltage options are available?
What is the lamp life expectancy?
Is the FR480RC suitable for cold-weather operation?
What sealing protection does the unit provide?
