Francis Searchlights FH300RC Twin Head
Twin head remote controlled searchlight for search and rescue and navigation operations. Features instant re-strike capability, marine-grade construction, and operational range of 3685 m.

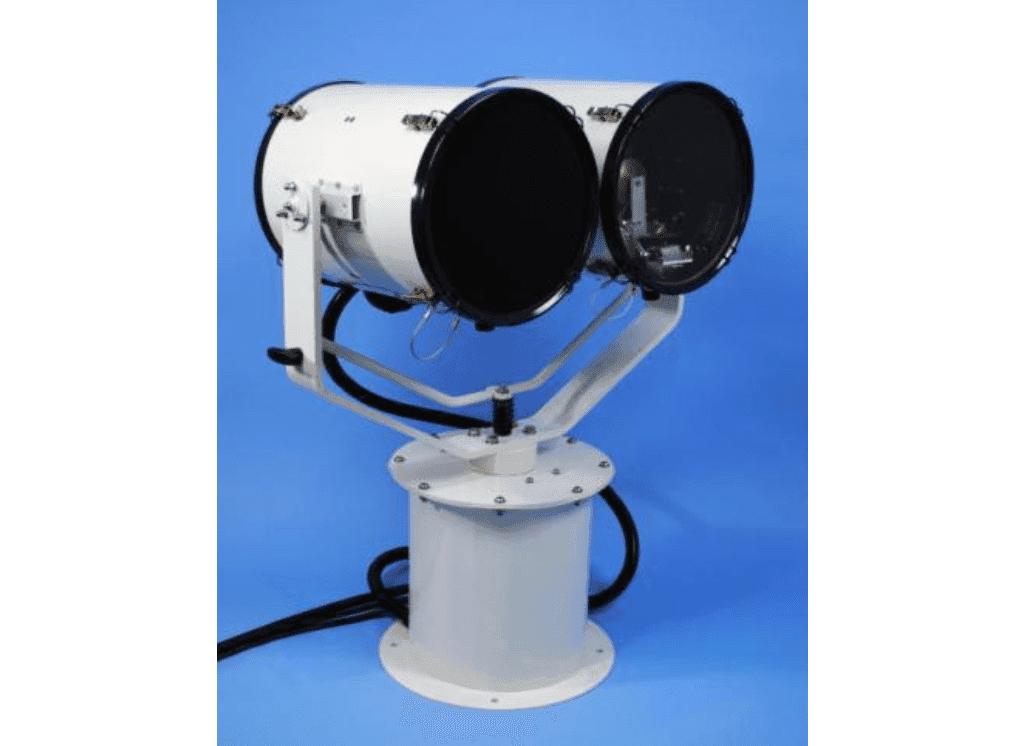

The Francis Searchlight FH300RC Twin Head is a metal halide remote control searchlight engineered for search and rescue and navigation applications. The unit delivers dual 575 W lamps with instant re-strike capability and no cooling down time between operations.
Construction utilizes marine-grade stainless steel and brass with toughened Optiwhite front glass and parabolic glass reflector. Pan rotation extends to 385°. Heater is fitted in gearbox with optional barrel heating. Operating temperature range extends to -50°C.
APPLICATIONS
Primary use cases.
Search and Rescue Operations
Twin head configuration with 3685 m operational range supports SAR vessel and coastal station deployments.
Navigation
Remote control capability and instant re-strike enable navigation light applications on commercial and military vessels.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlights FH300RC Twin Head.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7209 / D15764 |
| Voltage Input | 230 V |
| Wattage | 2 x 575 W |
| Lamp Life | 1,000 hrs |
| Operational Range | 3685 m |
| Operating Temperature | -50°C |
| Pan Rotation | 385° |
| Construction Material | Stainless steel and brass |
| Front Glass | Toughened Optiwhite |
| Reflector | Parabolic glass |
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the re-strike capability?
What materials are used in construction?
What is the operational temperature range?
What is the maximum pan rotation?
Is heating available for cold weather operation?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
