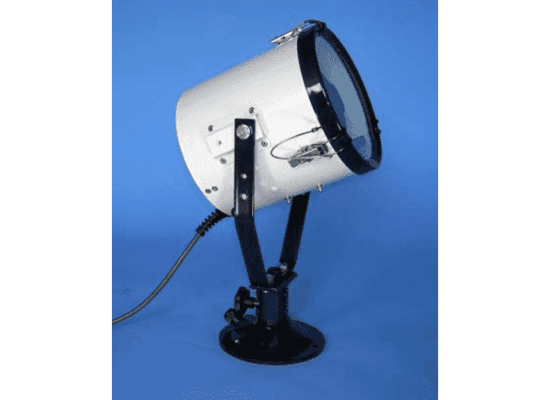

Francis Searchlights L230
Manually operated searchlight for marine and land-based applications. The L230 delivers cost-effective performance with external focus adjustment, IP67 weatherproofing, and operational range of 600–800 m. Suitable for patrol craft, custom vessels, and general marine use.
The Francis Lite L230 is a tungsten halogen searchlight engineered for demanding marine and land environments. The unit features a parabolic super pure aluminium reflector, toughened Optiwhite front glass, and external focus adjustment. Modular construction permits field modifications. Pan rotation extends to 450°.
IP67 weatherproof rating ensures operation in harsh conditions. Integrated light shield minimizes stray light and glare. Optional heater and remote focus are available. Operating temperature range extends to −50°C.
APPLICATIONS
Primary use cases.
Patrol Craft
Compact searchlight for fast-attack and patrol vessel applications requiring external focus and rapid pan capability.
Custom Vessels
Modular design accommodates integration into specialized marine platforms with optional heater and remote focus configurations.
General Marine Applications
Cost-effective solution for commercial and utility vessels operating in coastal and offshore environments.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlights L230.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A2914 / A2627 |
| Voltage Input | 12 V / 24 V / 230 V |
| Wattage | 100 W / 150 W / 300 W |
| Lamp Life | 2,000 hrs |
| Operational Range | 600 m – 800 m |
| Operating Temperature | −50°C minimum |
| Pan Rotation | 450° |
| Material | Marine grade stainless steel |
| Reflector | Parabolic super pure aluminium |
| Front Glass | Toughened Optiwhite |
| Weatherproof Rating | IP67 |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP67
Weatherproof enclosure rating. Dust-tight and protected against temporary immersion in water up to 1 m depth.
