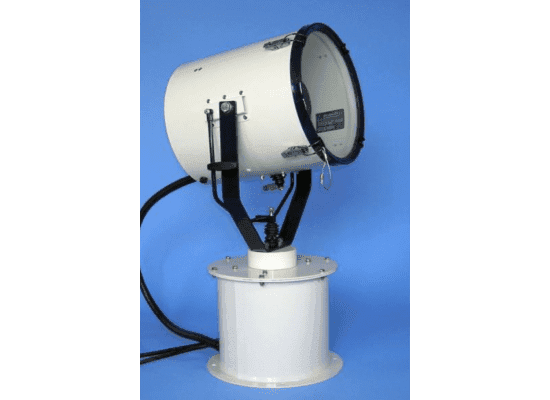

Francis Searchlights L300RC
The L300RC is a compact, cost-effective remote control searchlight designed for patrol craft, custom vessels, and general marine applications. It features external focus adjustment, IP67-rated gearbox, and IP66 searchlight housing for demanding land and sea environments.
The Francis Lite range of searchlights incorporates design features for operation in demanding environments on land and sea. The L300RC delivers remote pan rotation across 365° with external focus adjustment and optional remote focus capability.
Construction includes a parabolic formed aluminium reflector, toughened Optiwhite front glass, and marine-grade stainless steel housing. Modular design allows field modifications. Spill rings minimize unwanted stray light and glare. Heaters are fitted in the gearbox with optional barrel-mounted heater for cold-weather operation.
APPLICATIONS
Primary use cases.
Patrol Craft
Compact remote control design suitable for rapid deployment and repositioning on fast patrol vessels.
Custom Vessels
Modular construction allows integration into custom marine platforms with external focus and optional remote focus control.
General Marine Applications
Cost-effective searchlight for standard marine lighting, surveillance, and navigation support.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlights L300RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7108 / A7109 / A7106 |
| Voltage Input | 24V / 115V / 230V |
| Power Consumption | 600W – 1,000W |
| Lamp Type | Tungsten Halogen |
| Lamp Life | 750 hours |
| Effective Range | 1,000 m |
| Pan Rotation | 365° remote controlled |
| Focus Adjustment | External (remote option available) |
| Operating Temperature | -50°C minimum |
| Reflector | Parabolic formed aluminium |
| Front Glass | Toughened Optiwhite |
| Housing Material | Marine-grade stainless steel |
| Gearbox Rating | IP67 |
| Searchlight Housing Rating | IP66 |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP67 / IP66
Gearbox rated IP67 (dust and water tight to 1m immersion). Searchlight housing rated IP66 (protection against heavy seas and spray).
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What voltage options are available for the L300RC?
Can the L300RC be used in sub-zero environments?
Is remote focus control standard or optional?
What is the effective illumination range?
What protection rating does the gearbox have?
