Halogen

Francis Searchlights L380

Name: Francis Searchlights L380
Brand: Britmar Marine

IP66-rated tungsten halogen searchlight for marine and land-based applications. Features parabolic aluminium reflector, external focus, and operational range to 1,200 m. Available in 24V, 150V, and 230V configurations with wattage from 150W to 1,000W.

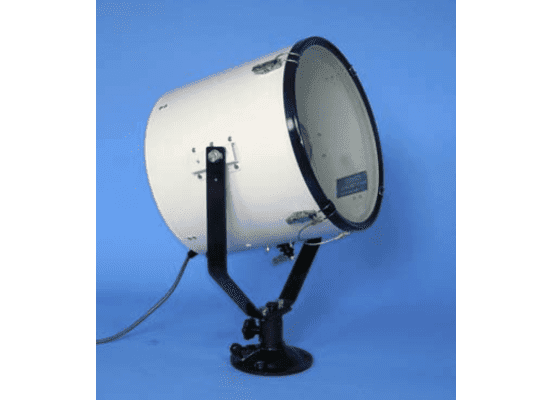

MAIN IMAGE

The Francis Lite L380 searchlight is engineered for demanding operational environments on land and sea. The unit incorporates a parabolic super pure aluminium reflector with toughened Optiwhite front glass for optical clarity and durability.

Suitable for patrol craft, custom vessels, and general marine applications. The modular design permits field modifications. Optional heater barrel and remote focus control are available. Pan rotation extends to 450°. Integrated light shield minimizes stray light and glare.

APPLICATIONS

Primary use cases.

Patrol Craft

Compact searchlight for rapid-response and coastal patrol vessels requiring manual directional control and extended visibility range.

Custom Vessels

Modular design accommodates integration into specialized marine platforms with field-configurable voltage and wattage options.

General Marine Applications

Cost-effective solution for navigation, cargo operations, and general illumination on commercial and utility vessels.

TECHNICAL DATA

Complete specifications and tolerances for the Francis Searchlights L380.

PARAMETER	SPECIFICATION
Part Number	A2591 / A2587
Voltage Input	24V / 150V / 230V
Wattage	150W – 1,000W
Lamp Life	2,000 hrs
Effective Range	1,200 m
Operating Temperature	-50°C
Pan Rotation	450°
Material	Marine grade stainless steel
Reflector	Parabolic super pure aluminium
Front Lens	Toughened Optiwhite glass
Enclosure Rating	IP66

REGULATORY COMPLIANCE

Validated by the world's leading maritime classification societies.

IP Rating

IP66

Weatherproof enclosure rating. Dust-tight and protected against high-pressure water jets from any direction.

TECHNICAL FAQ

Common specifications and regulatory inquiries.

What voltage options are available for the L380?

The L380 is supplied in 24V, 150V, and 230V configurations. Wattage ranges from 150W to 1,000W depending on voltage selection and application requirements.

Can the L380 operate in cold climates?

Yes. The unit is rated for operation at -50°C. An optional heater barrel is available for extended cold-weather deployment.

Is remote focus control available?

Remote focus is available as an optional upgrade. Standard configuration includes external manual focus.

What is the effective illumination range?

The L380 delivers effective illumination to 1,200 m under standard atmospheric conditions.

Can the L380 be modified for custom installations?

Yes. The modular design permits field modifications. Special dimensions are available on request. Contact Britmar for custom configuration options.
