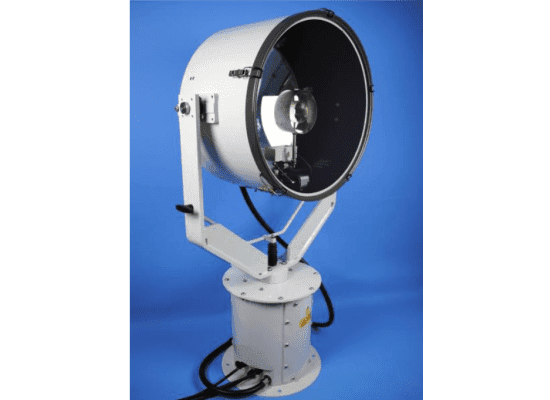

Francis Searchlights L560RC
The L560RC is a compact, cost-effective remote control searchlight designed for patrol craft, custom vessels, and general marine applications. It features IP66-rated weatherproof construction, variable speed control, RS485 connectivity, and external focus adjustment. The unit operates across a 1,500 m range with tungsten halogen lamp technology and marine-grade stainless steel construction.
The Francis Lite range incorporates design features for demanding operating environments on land and sea. The L560RC delivers remote pan rotation of 385° with elevation control, full variable speed adjustment, and modern joystick control panel with membrane and LED technology.
Key features include RS485 interface, auto home position setting, parabolic formed aluminium reflector, and spill rings to prevent stray light and glare. Optional heater elements are available in both gearbox and barrel. Modular design allows field modifications to suit specific vessel requirements.
The searchlight and gearbox both meet IP66 weatherproof rating. Toughened front glass provides impact resistance. Remote focus adjustment is available as an optional upgrade.
APPLICATIONS
Primary use cases.
Patrol Craft
Compact form factor and remote control capability suit fast patrol vessel operations with 385° pan rotation and elevation control.
Custom Vessels
Modular design accommodates integration into custom-built marine platforms with optional heater and remote focus configurations.
General Marine Applications
Cost-effective searchlight solution for commercial and utility vessel lighting, surveillance, and navigation support.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlights L560RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7020 |
| Voltage Input | 115 V / 230 V |
| Power Consumption | 2,000 W / 3,000 W |
| Lamp Type | Tungsten Halogen |
| Lamp Life | 400 hrs |
| Effective Range | 1,500 m |
| Pan Rotation | 385° |
| Elevation Control | Variable |
| Operating Temperature | -50°C to +55°C |
| IP Rating (Gearbox) | IP66 |
| IP Rating (Searchlight) | IP66 |
| Primary Material | Marine Grade Stainless Steel |
| Reflector | Parabolic Formed Aluminium |
| Front Glass | Toughened |
| Control Interface | RS485 / Joystick Panel |
| Focus Adjustment | External (Remote Optional) |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66
Gearbox and searchlight assembly rated IP66 for complete dust and water ingress protection in marine environments.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What voltage options are available for the L560RC?
What is the operational temperature range?
How is the searchlight controlled remotely?
What is the effective illumination range?
Can the focus be adjusted remotely?
What weatherproofing is provided?
Is the design modular?
What is the lamp service life?
