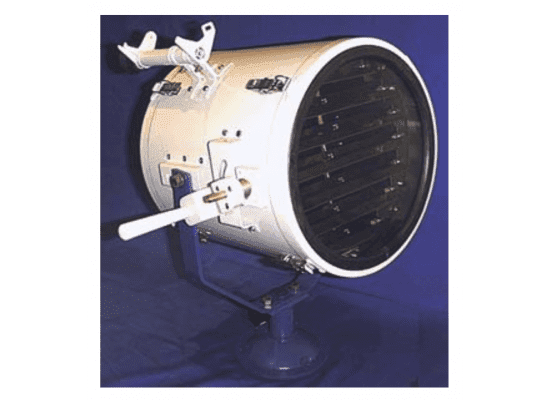

Francis Signalling Searchlight FSP300
Tungsten halogen signalling searchlight with 300mm projector for day/night visual signalling on vessels. Available in deck or pedestal mounting configurations. IP66 sealed with adjustable focus, morse code shutter mechanism, and 450° rotation capability.
The Francis FSP300 is a permanently installed signalling searchlight designed for marine vessels requiring reliable day/night visual communication. The unit features an adjustable focus mechanism and combined tubular and V sights for precise targeting. The shutter mechanism locks in the open position, enabling operation as a searchlight or morse code signalling device.
Construction includes a parabolic glass reflector, removable front and rear bezels for maintenance access, and marine-grade materials throughout. The IP66 sealing rating provides protection against water ingress in harsh maritime environments.
APPLICATIONS
Primary use cases.
Commercial Vessel Signalling
Permanently installed day/night visual signalling system for merchant and naval vessels requiring morse code communication capability.
Search and Rescue Operations
1,000m operational range supports search operations and emergency signalling with 450° rotation coverage.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Signalling Searchlight FSP300.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Numbers | A4184 / A4186 / A4185 |
| Projector Diameter | 300mm (12 inches) |
| Voltage Options | 12V / 24V / 230V |
| Power Consumption | 1,000W |
| Lamp Type | Tungsten Halogen |
| Lamp Life | 2,000 hours |
| Operational Range | 1,000m (searchlight); 10 miles / 16km (daylight signalling) |
| Signalling Speed | Up to 12 words per minute |
| Rotation | Full 450° |
| Operating Temperature | -50°C minimum |
| Sealing Rating | IP66 |
| Material | Marine grade |
| Mounting Options | Deck or deck pedestal |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66
Complete dust protection and water jet resistance. Suitable for deck-mounted marine applications.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What mounting options are available for the FSP300?
What is the signalling range in daylight conditions?
Can the unit operate as both a searchlight and signalling device?
What voltage options are available?
What is the operational temperature range?
How is the unit sealed against water ingress?
