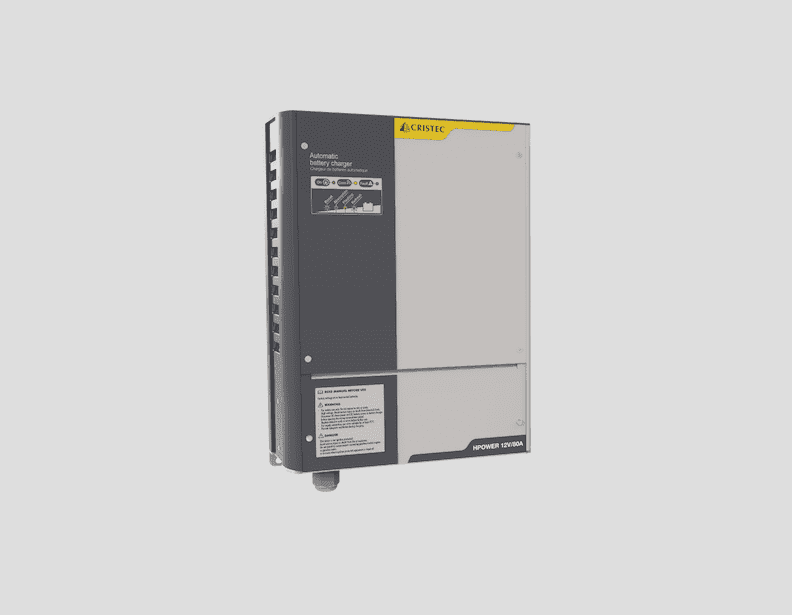

HPower Battery Charger – Cristec
AC-DC battery charger system with 5-stage charging profile and support for multiple battery types. Operates across 12–48V with output ratings from 1,600W to 3,520W. Features three isolated battery banks with no current limitation, aluminum casing with marine-grade coating, and IP23 sealing for environmental protection.
The Cristec HPower line delivers AC-DC conversion for multi-bank battery charging applications. Internal components are coated to resist heat and humidity exposure, extending service life in demanding marine and industrial environments.
Key Features: 5-stage charging profile optimizes charge cycles across battery chemistries. Three isolated battery banks operate independently with no current limitation. Aluminum enclosure with special marine-grade coating provides corrosion resistance. Power supply mode enables continuous operation during charging cycles.
APPLICATIONS
Primary use cases.
Marine Vessels
Multi-bank charging for auxiliary power systems. Marine-grade coating resists salt spray and humidity.
Industrial Power Systems
Flexible battery type support (Gel, AGM, Flooded, Lithium Ion, Program) for backup and UPS applications.
Off-Grid Energy Storage
Three isolated banks enable independent charging of separate battery systems without cross-current interference.
TECHNICAL DATA
Complete specifications and tolerances for the HPower Battery Charger – Cristec.
| PARAMETER | SPECIFICATION |
|---|---|
| Product Code | HPOxx-xx |
| Output Voltage | 12–48V DC |
| Power Rating | 1,600W–3,520W |
| Output Current | 30–60A |
| Battery Types Supported | Gel, AGM, Flooded, Lithium Ion, Programmable |
| Charging Profile | 5-stage |
| Battery Banks | 3 isolated banks, no current limitation |
| Enclosure Material | Aluminum with marine-grade coating |
| IP Rating | IP23 |
| Operating Mode | Power supply mode |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP23
Ingress protection rating: protected against spray water up to 60° from vertical and solid objects larger than 12mm.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What battery chemistries does the HPower charger support?
Can multiple battery banks be charged simultaneously?
Is the HPower suitable for marine environments?
What output voltage and current options are available?
What is the 5-stage charging profile?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
