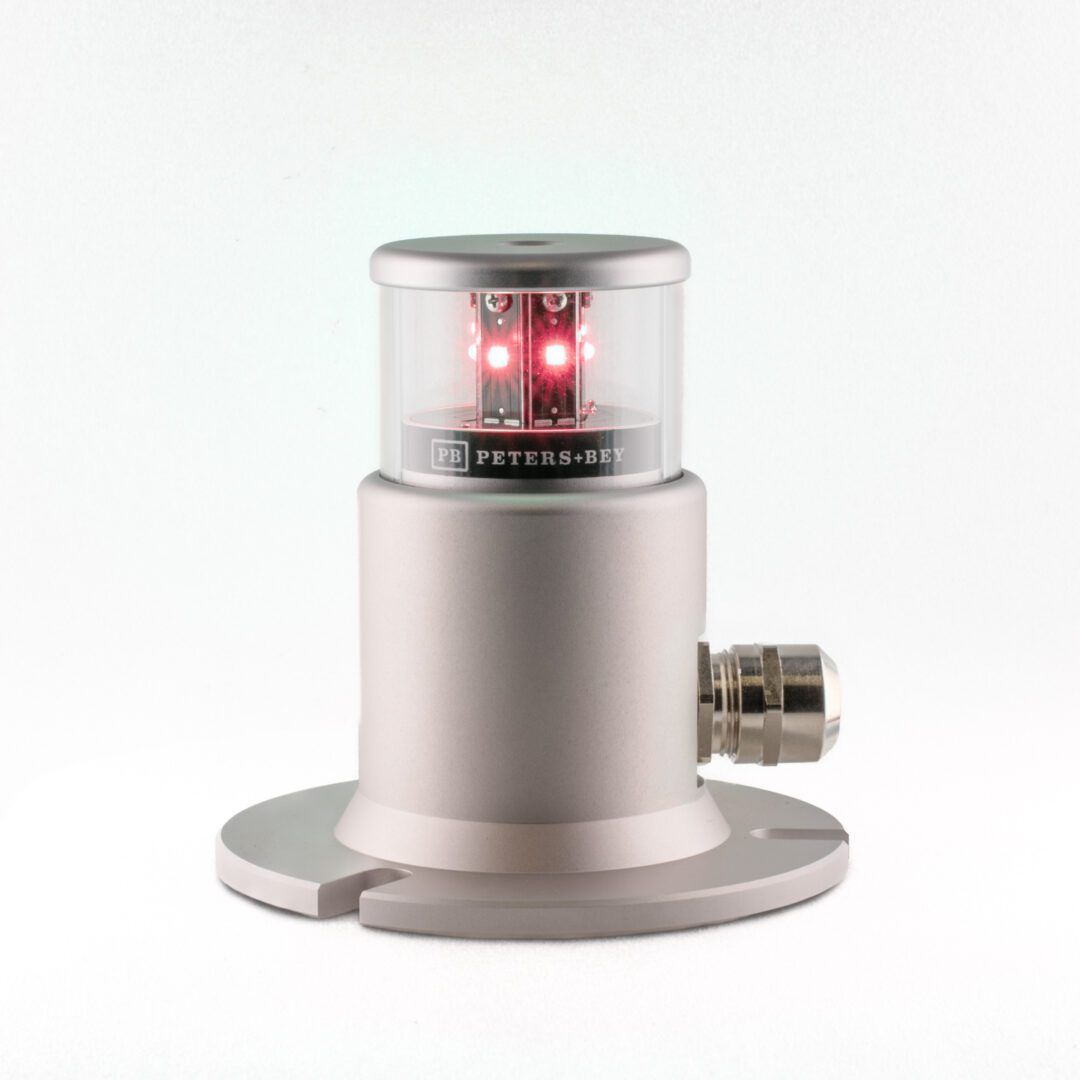

LED Flash/Signal Light – FL 570 / CL 570
Industrial and maritime signalling light with dual voltage operation (24V DC, 115V/230V AC). Silver anodised aluminium housing. Available in five colors with regulated flash rates compliant to international maritime codes. Visibility range up to 3 nautical miles.
The FL 570 and CL 570 are LED signal lights designed for industrial and maritime safety applications. Manufactured in Germany, these units deliver consistent visual signalling across demanding operational environments.
Power consumption is 1.4 W at 24V DC or 2.1 W at 115V/230V AC. The silver anodised aluminium housing provides corrosion resistance and structural durability. Visibility extends to 3 nautical miles under standard conditions.
Color and flash rate combinations comply with international maritime safety regulations. Red (120 flashes/min) indicates dangerous cargo. Green (180 flashes/min) marks large vessels. Yellow, blue, and white variants (60 flashes/min) provide general signalling across maritime and industrial applications.
APPLICATIONS
Primary use cases.
Maritime Vessel Marking
Identification of cargo type and vessel classification according to international maritime codes. Red lights mark dangerous cargo; green lights identify large vessels.
Harbor and Port Operations
Navigation guidance and marking of critical operational zones, channel markers, and vessel positioning points.
Industrial Site Safety
Visible warning signals in large-scale industrial facilities, construction sites, and hazardous work areas requiring immediate visual alerts.
TECHNICAL DATA
Complete specifications and tolerances for the LED Flash/Signal Light – FL 570 / CL 570.
| PARAMETER | SPECIFICATION |
|---|---|
| Voltage Input | 24V DC or 115V/230V AC |
| Power Consumption | 1.4 W (24V DC) / 2.1 W (115V/230V AC) |
| Housing Material | Silver anodised aluminium |
| Visibility Range | Up to 3 nautical miles |
| Available Colors | Red, Green, Yellow, Blue, White |
| Flash Rates | 60 flashes/min (Yellow, Blue, White) / 120 flashes/min (Red) / 180 flashes/min (Green) |
| Maintenance | Maintenance-free operational life |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
SOLAS / COLREG
Signal light colors and flash rates comply with Safety of Life at Sea regulations and International Regulations for Preventing Collisions at Sea.
IEC 60529
Enclosure rating for environmental protection (specific IP rating to be confirmed with manufacturer).
