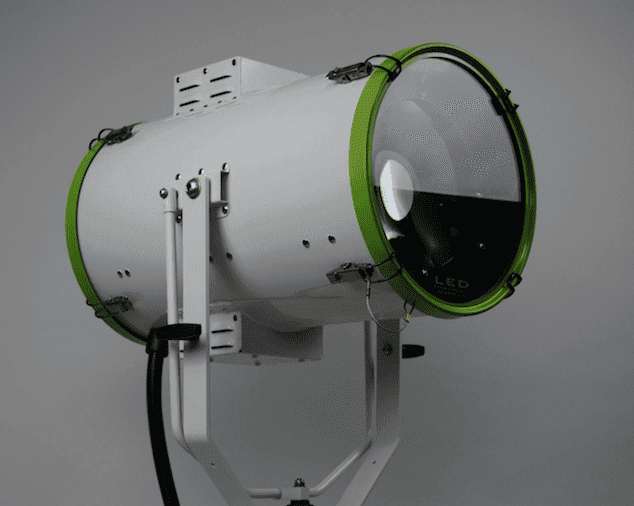

LED Francis Searchlight – L300RC
234W LED remote control searchlight with Osram LED technology. Delivers illumination equivalent to 300W Xenon or 3kW Halogen lamps with 20,000-hour LED lifespan. IP66 gearbox, IP56 searchlight housing. Remote pan/elevation control with optional focus capability.
The L300RC LED searchlight replaces traditional lamp sources with Osram LED technology, reducing power consumption while maintaining high output. Precision-engineered glass lenses optimize light collimation to extend effective range to 3,050 meters.
Construction uses marine-grade stainless steel with weatherproof enclosures. The gearbox achieves IP66 rating; searchlight body IP56. Integrated heaters in both gearbox and barrel enable operation at -50°C. Remote pan rotation spans 365° with elevation control via RS485 connectivity.
Toughened super-clear front glass and spill rings minimize stray light and glare. Remote focus is available as an optional upgrade.
APPLICATIONS
Primary use cases.
Patrol Vessels
Remote-controlled searchlight for deck-mounted surveillance and target illumination on patrol craft.
Search and Rescue
Extended 3,050m range supports SAR operations requiring long-distance target location and identification.
Custom Vessels
Adaptable mounting and control interface for specialized marine platform integration.
TECHNICAL DATA
Complete specifications and tolerances for the LED Francis Searchlight – L300RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7179 |
| Power Output | 234 W |
| Voltage Input | 115 V / 230 V |
| LED Lifespan | 20,000 hours |
| Effective Range | 3,050 m |
| Operating Temperature | -50°C to ambient |
| Gearbox Rating | IP66 |
| Searchlight Rating | IP56 |
| Pan Rotation | 365° continuous |
| Control Interface | RS485 connectivity |
| Material | Marine-grade stainless steel |
| Front Optic | Toughened super-clear glass |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66/IP56
Gearbox rated IP66 (dust-tight, high-pressure water jets). Searchlight body rated IP56 (limited dust ingress, water jets from any direction).
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the light output equivalent compared to traditional sources?
Can the searchlight operate in cold climates?
Is remote focus available?
What control protocol does the L300RC use?
How long is the LED lifespan?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
