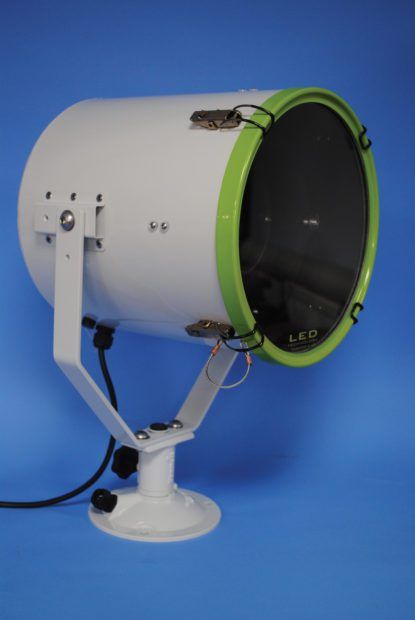

LED Searchlight – Francis L300
110W manually controlled LED searchlight with CREE LED technology. IP66 sealed design for security, patrol, and general applications. Operates at -50°C with 33,000-hour lamp life and 1,089m effective range.
The Francis L300 LED searchlight delivers 110W output with low power consumption using CREE LED technology. Designed for marine and industrial environments, it provides color temperature equivalent to a 1,000W halogen lamp while reducing operational costs and energy demand.
Construction features a parabolic split glass reflector with toughened front glass and marine-grade materials. IP66 sealing protects both the searchlight and power supply unit. Modular design permits field modifications. Optional barrel heaters available for extreme cold environments.
APPLICATIONS
Primary use cases.
Security Applications
Perimeter surveillance and area illumination for fixed security installations.
Patrol Operations
Mobile searchlight for vehicle-mounted and handheld patrol use.
General Industrial
Dock, harbor, and facility lighting requiring long-range illumination.
TECHNICAL DATA
Complete specifications and tolerances for the LED Searchlight – Francis L300.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A6172 / A7201 |
| Power Input | 115W / 230V |
| Wattage | 110W |
| Lamp Life | 33,000 hours |
| Effective Range | 1,089 meters |
| Operating Temperature | -50°C minimum |
| Material | Marine grade |
| Sealing Rating | IP66 |
| Reflector | Parabolic split glass |
| Front Glass | Toughened |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66
Complete dust protection and high-pressure water jet resistance for searchlight and power supply unit.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What LED technology does the Francis L300 use?
What is the effective illumination range?
Can the L300 operate in cold climates?
Is the design modular?
What protection rating does the unit have?
