Exterior Flood Lights

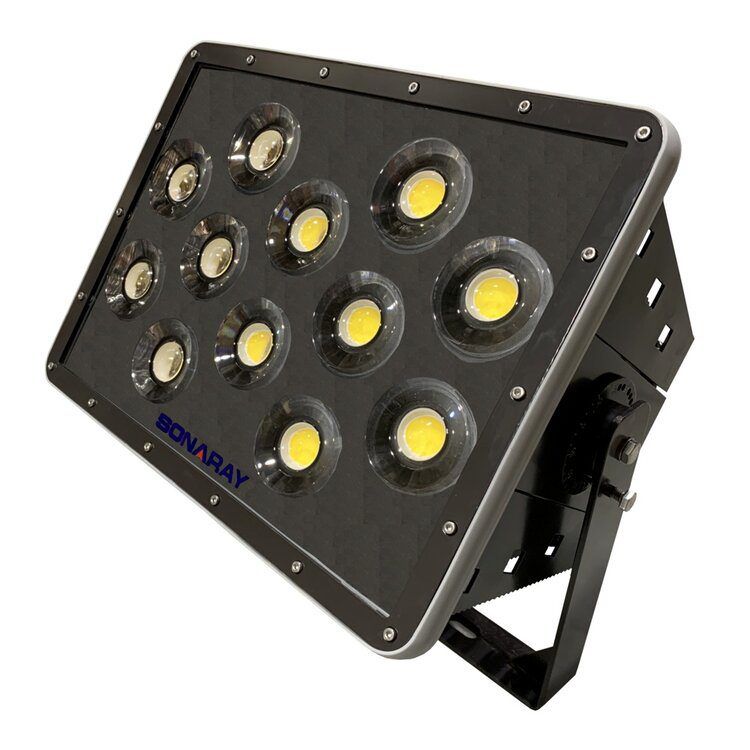

Marine LED Flood Light – Sonaray DELTA

Name: Marine LED Flood Light – Sonaray DELTA
Brand: Britmar Marine

507W LED flood light for outdoor marine and industrial applications. IP65 and IK09 rated with die-cast aluminum housing and anti-corrosive finish. Delivers 69,000 lumens with 50,000+ hour lifetime.

MAIN IMAGE

The Sonaray DELTA LED flood light provides efficient illumination for outdoor applications requiring durability in harsh environments. Engineered for marine ports, harbors, and industrial area lighting with medium and wide distribution options.

Housing: Die-cast aluminum with anti-corrosive finish. Mounting: Yoke mount standard; optional Slipfitter available. Sealing: IP65 and IK09 rated for environmental protection.

APPLICATIONS

Primary use cases.

Marine Ports and Harbors

Area lighting for cargo handling, vessel operations, and dock security. Anti-corrosive finish withstands salt-air exposure.

Security Lighting

Perimeter and facility illumination for industrial and recreational marine installations.

Industrial Area Lighting

General-purpose outdoor lighting for facilities requiring durable, efficient flood illumination.

TECHNICAL DATA

Complete specifications and tolerances for the Marine LED Flood Light – Sonaray DELTA.

PARAMETER	SPECIFICATION
Series	FL-3
Power Output	507 W
Voltage Input	200 V – 480 V
Luminous Output	69,000 lm
Rated Lifetime	50,000+ hours
Housing Material	Die-cast aluminum
Sealing Protection	IP65, IK09
Finish	Anti-corrosive coating
Mounting	Yoke mount standard; Slipfitter optional
Beam Distribution	Medium and wide options
Certifications	UL, CE

REGULATORY COMPLIANCE

Validated by the world's leading maritime classification societies.

Underwriters Laboratories

Product certified to UL safety standards for electrical equipment.

Conformité Européenne

Product meets European Union safety and performance directives.

IEC

IK09 Impact Rating

Enclosure rated for 20 joules impact resistance; suitable for high-impact marine environments.

IEC

IP65 Sealing Rating

Dust-tight and water-jet resistant; protects against salt spray and washdown conditions.

TECHNICAL FAQ

Common specifications and regulatory inquiries.

What is the IP and IK rating of the Sonaray DELTA?

IP65 sealing protection (dust-tight, water-jet resistant) and IK09 impact rating (20 joules). Suitable for harsh marine environments and high-impact applications.

What voltage options are available?

200 V to 480 V input. Confirm specific voltage requirement with application specifications.

What is the expected service life?

50,000+ hours rated lifetime under normal operating conditions.

Is the housing corrosion-resistant?

Yes. Die-cast aluminum construction with anti-corrosive finish designed for salt-air and marine environments.

What mounting options are available?

Yoke mount is standard. Slipfitter mounting is available as an optional accessory.

What is the light output?

69,000 lumens at 507 watts. Medium and wide beam distribution options available.

SUPPLEMENTARY FILES

Data Sheets, Manuals, and Technical Specifications.

SONARAY SPECIFICATIONS DELTA FLOOD
