Plug Module – WallMax Cable Transits

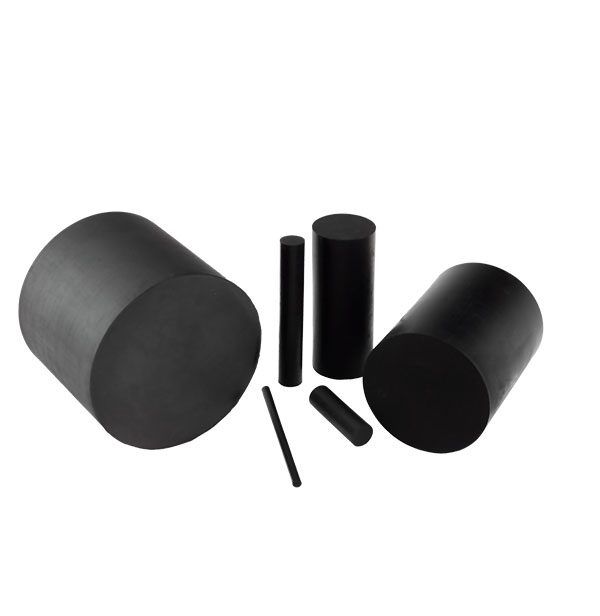

The WP Module seals unused cable transit openings in WallMax regular modules. Use this plug when previously installed cable transits are no longer required, eliminating the need to purchase replacement modules.
The WP Module is a solid plug designed to seal openings in WallMax regular modules where cable space is not in use. This solution is ideal for applications where cable transits were previously installed but are no longer required. By sealing these openings with the WP Module, you avoid the cost and lead time of acquiring new modules.
Key Features: Solid plug construction for regular modules; available in a wide range of sizes (21.5–93 mm diameters); manufactured from durable EPDM rubber; cost-effective sealing solution; used in combination with WallMax Regular modules.
APPLICATIONS
Primary use cases.
Cable Transit Sealing
Seals unused cable openings in modular cable transit systems to maintain enclosure integrity and prevent ingress.
TECHNICAL DATA
Complete specifications and tolerances for the Plug Module – WallMax Cable Transits.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 6002 XXXX |
| Diameter Range | 21.5–93 mm |
| Weight Range | 0.026–0.481 kg |
| Material | EPDM Rubber |
| Product Type | Plug Module |
