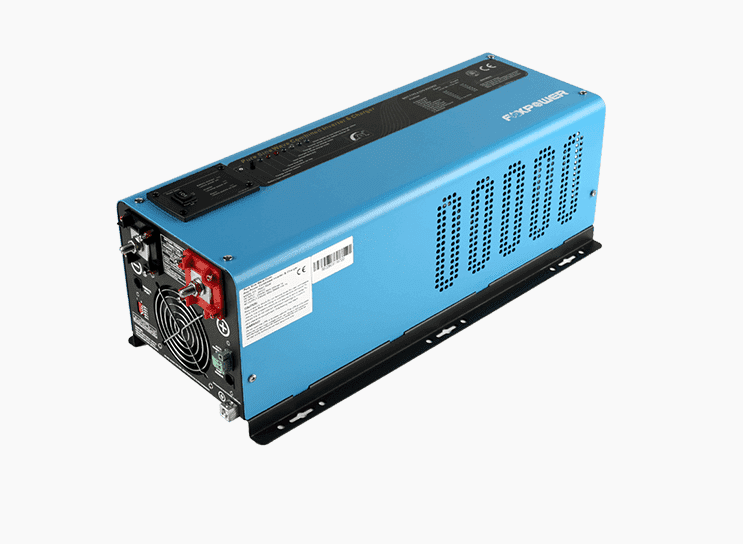

PSW7 230V AC Power Inverter Charger – FoxPower
The PSW7 is a 1kW–6kW low-frequency pure sine wave inverter charger combining inversion, battery charging, and AC auto-transfer switching in a single unit. Conversion efficiency reaches 88%. The system supports 12–24 VDC input and delivers 230VAC output with integrated surge capacity for high-inrush loads.
The PSW7 integrates three core functions: DC-to-AC power inversion, battery charging from AC mains, and automatic AC source switching. This eliminates the need for separate components in off-grid and backup power applications.
Key operational features include low quiescent current draw, power-saver mode for reduced standby consumption, automatic generator start capability, and LED status indication. Optional RS232 communication and LCD display modules enable remote monitoring and configuration.
The unit supports low DC voltage operation suitable for residential and commercial applications. Surge capacity allows startup of motors and compressors without load shedding.
APPLICATIONS
Primary use cases.
Residential Off-Grid Systems
Provides primary AC power conversion and battery management for homes without grid connection or during extended outages.
Commercial Backup Power
Supports critical loads in offices and small commercial facilities with automatic switchover from mains to battery-backed inverter output.
Remote Installations
Enables standalone operation in locations with unreliable or absent grid infrastructure, paired with solar arrays or generator sets.
TECHNICAL DATA
Complete specifications and tolerances for the PSW7 230V AC Power Inverter Charger – FoxPower.
| PARAMETER | SPECIFICATION |
|---|---|
| Product Code | PSW1012E |
| Input Voltage (DC) | 12–24 VDC |
| Output Voltage (AC) | 230 VAC |
| Power Range | 1,000–6,000 W |
| Output Waveform | Pure Sine Wave |
| Conversion Efficiency | 88% |
| Dimensions | 598 × 218 × 179 mm |
| Weight | 35–45 kg |
