Round Squared Frame – WallMax Transits

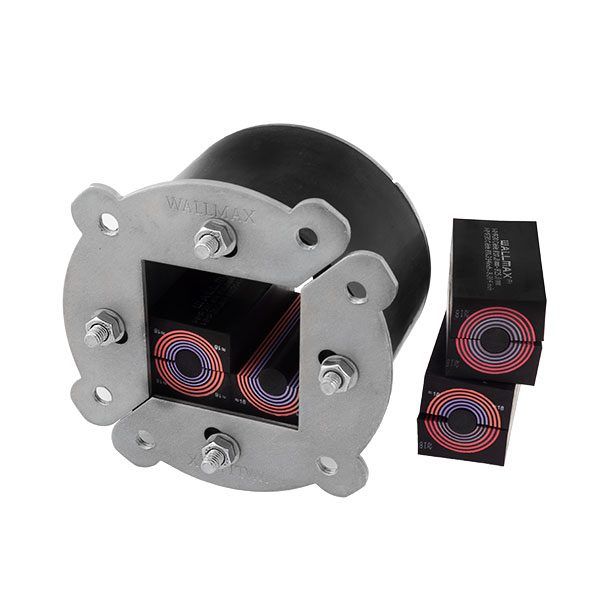

WRS Round Squared frames accommodate WMR series modules with inner square packing in multiple dimensions. Passage sealing is achieved by tightening flange bolts without requiring expander or retainer plates. Optional external sleeve available as accessory.
The WRS are Round Squared frames with inner square packing that accommodates modules from the WMR series. Multiple dimensions of packing space are offered to allow a variety of module combinations and sizing for maximum adaptability.
Passage sealing is completed by tightening available bolts on the flange. This design eliminates the need for expander or retainer plates. WRS frames can be completed with an additional external sleeve available as an accessory.
APPLICATIONS
Primary use cases.
Cable and Pipe Transits
WRS frames provide passage sealing for cables and pipes through walls with bolt-tightened flange assembly.
TECHNICAL DATA
Complete specifications and tolerances for the Round Squared Frame – WallMax Transits.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 1101 0XXX |
| Wall Opening Range | 71–202 mm |
| Packing Space Range | 40×40–120×120 mm |
| Weight Range | 0.43–2.45 kg |
| Material | AISI 316, Galvanized |
| Product Type | Round Squared Frame Transit |
