SLVWR Sleeve Accessory – WallMax
SLVWR Sleeves are frame-mounted accessories designed for cable and pipe transits within WallMax WR frame systems. Available in multiple sizes to accommodate any WR frame dimension, with options for flanged or non-flanged configurations and material selection.
SLVWR Sleeves function as mounting and passage-securing accessories that complement WallMax WR frames. These sleeves enable frame installation and cable/pipe routing through wall penetrations. A range of inner and outer diameters accommodates standard WR frame sizes.

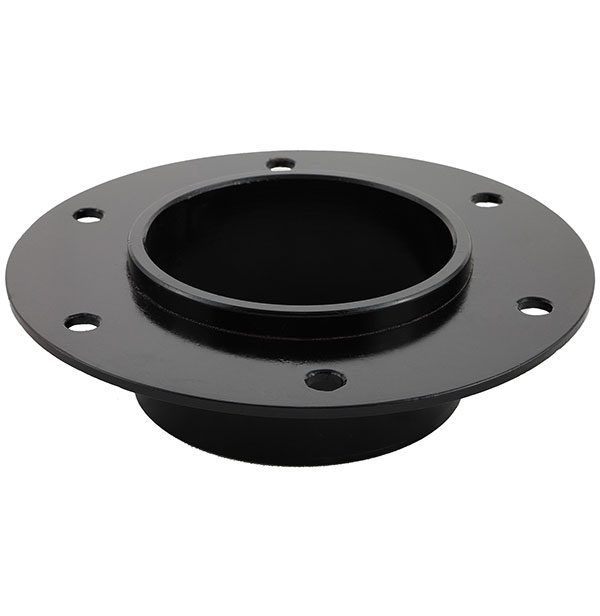

Material options include primed steel, aluminum, and AISI 316 stainless steel. Sleeves are supplied with or without flange configurations depending on application requirements.
APPLICATIONS
Primary use cases.
Cable and Pipe Transit Systems
Secures passages for electrical cables and mechanical piping through wall-mounted WR frame installations.
Frame Mounting Applications
Provides structural support and alignment for WallMax WR frames in fixed wall installations.
TECHNICAL DATA
Complete specifications and tolerances for the SLVWR Sleeve Accessory – WallMax.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 11XX XXXX |
| Inner Diameter | 24–200 mm |
| Outer Diameter | 32–200 mm |
| Weight Range | 0.08–3.12 kg |
| Frame Type | Plastic Frame |
| Material Options | Primed Steel, Aluminum, AISI 316 Stainless Steel |
| Configuration | With or without flange |
