Solid Module – WallMax Cable Transits

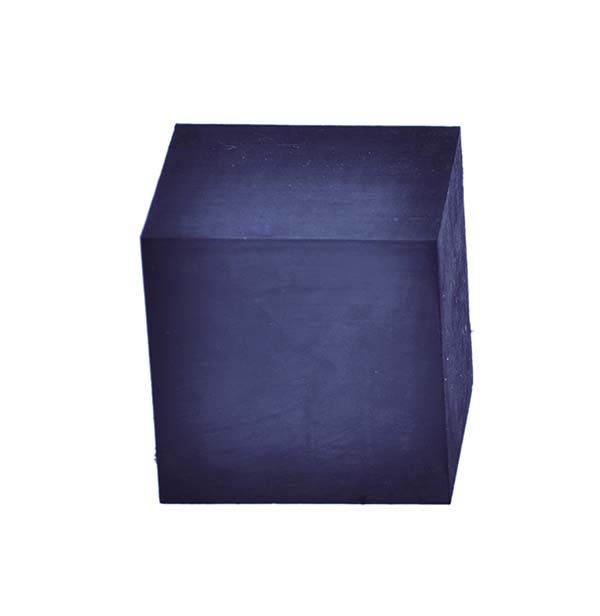

The WMS module is a solid rubber block designed to seal or fill space inside wall frames where alternative modules with openings cannot be used. Any unused space can be filled with different sized blocks to create a complete seal.
The WallMax Solid Module (WMS) functions as a filler block within wall frame systems. It addresses applications where standard modules with cable openings are unsuitable. The solid construction allows for flexible space management—unused areas are filled with appropriately sized blocks to achieve complete sealing.
The WMS integrates with regular WallMax modules to form complete sealing solutions. Its rubber composition provides durability across standard operating environments. Available in multiple sizes to accommodate various frame dimensions and spacing requirements.
APPLICATIONS
Primary use cases.
Wall Frame Sealing Systems
Used in conjunction with WallMax regular modules to fill unused spaces and complete cable transit sealing within wall-mounted enclosures.
TECHNICAL DATA
Complete specifications and tolerances for the Solid Module – WallMax Cable Transits.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 6003 XXXX |
| Material | EPDM Rubber |
| Dimensions | 5×40 mm to 60×60 mm |
| Weight Range | 0.014 kg to 0.255 kg |
| Module Type | Solid Block |
TECHNICAL FAQ
Common specifications and regulatory inquiries.
