ST76 1000W HID
1000W HID floodlight rated 120-277V for outdoor industrial applications. IP 67 stainless steel housing with E39 lamp base. Ballast unit ordered separately.

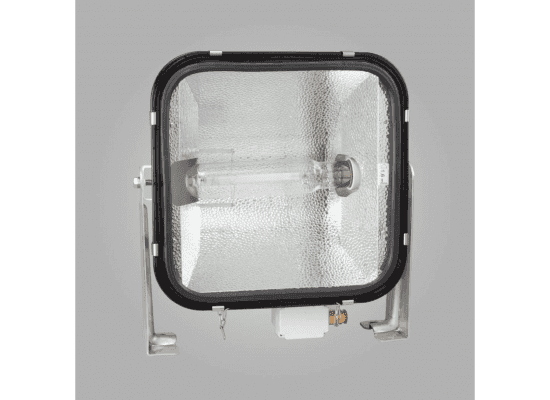

The ST76 is a 1000W HID floodlight designed for deck, hold, and industrial area illumination. The fixture features a seamless stainless steel housing with deep-drawn construction and white powder coating. Safety glass diffuser and anodized aluminum reflector provide optical performance and durability in marine and industrial environments.
Electrical configuration includes 120-277V input with flexible, high-temperature resistant wiring. Cable entry via M 24×1.5 brass cable glands with grounding insert. Adjustable stainless steel mounting bracket included. Ballast unit must be ordered separately.
APPLICATIONS
Primary use cases.
Vessel Decks
Outdoor deck illumination on commercial and industrial vessels
Ship Holds
Interior cargo hold lighting in marine environments
Industrial Areas
General industrial outdoor and wet-location applications
TECHNICAL DATA
Complete specifications and tolerances for the ST76 1000W HID.
| PARAMETER | SPECIFICATION |
|---|---|
| Power Rating | 1000W |
| Lamp Type | HPS/MH 1000W E39 |
| Number of Lamps | 1 |
| Voltage Input | 120-277V |
| IP Rating | IP 67 |
| Housing Material | Stainless steel, deep drawn, white powder coat |
| Diffuser | Safety glass |
| Reflector | Anodized aluminum |
| Cable Entry | M 24×1.5 brass cable glands with grounding insert |
| Mounting | Adjustable stainless steel bracket |
| Weight | 11.1 kg (24.47 lbs) |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
Marine Approvals
Complies with relevant classification society rules for marine vessel installation
VDE Certification
Electrical safety certification per VDE standards
IEC Standards
Conforms to IEC electrical equipment standards
North American Approval
Certified for use in Canada and United States
TECHNICAL FAQ
Common specifications and regulatory inquiries.
Is the ballast unit included?
What lamp types are compatible?
What is the voltage range?
Is a narrow beam reflector available?
What is the IP rating?
