Suez Canal Searchlight – Francis FL710

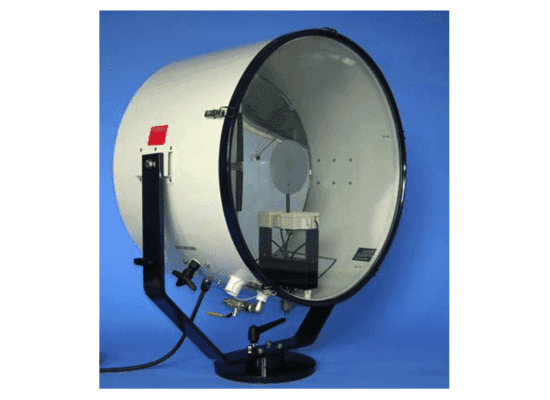

The Francis FL710 is a dual-purpose searchlight designed for navigation and maritime operations in demanding environments. Built to Suez Canal Authority specification with IP56 sealing, parabolic reflector, and lamp changeover system for operational redundancy.
The Francis FL710 searchlight incorporates design features for operation in demanding land and sea environments. These dual-purpose split or single beam units meet Suez Canal Authority specifications and are mandatory equipment for vessels transiting the canal.
The unit features a lamp changeover system with one operational lamp and one spare, ensuring continuity of operation in the event of lamp failure. Construction uses marine-grade materials and fixings throughout, with gas-proofing for tanker applications.
APPLICATIONS
Primary use cases.
Suez Canal Transit
Mandatory searchlight equipment for commercial vessels and tankers passing through the Suez Canal.
Maritime Navigation
Deck-mounted searchlight for vessel navigation, signaling, and search operations in open water and coastal environments.
Tanker Operations
Gas-proofed design suitable for use on petroleum and chemical tankers requiring hazardous area compliance.
TECHNICAL DATA
Complete specifications and tolerances for the Suez Canal Searchlight – Francis FL710.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A2703 |
| Voltage | 115 V / 240 V AC |
| Power Consumption | 2,000 W / 3,000 W |
| Lamp Life | 400 hours |
| Effective Range | 1,572 m |
| Sealing Protection | IP56 |
| Operating Temperature | -40°C to +50°C |
| Pan Rotation | 360° |
| Reflector | Parabolic split glass |
| Material | Marine grade |
| Lamp Configuration | Dual lamp changeover system (1 operational, 1 spare) |
| Beam Type | Split or single beam |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
Searchlight Specification Compliance
Mandatory equipment specification for vessels transiting the Suez Canal. Meets all operational and safety requirements for canal passage.
IP56 Sealing Protection
Dust and water ingress protection rating suitable for marine environments and deck-mounted applications.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
Is the FL710 compliant with Suez Canal Authority requirements?
What is the lamp changeover system?
Can the FL710 be used on tankers?
What voltage options are available?
What is the effective operating range?
What is the operating temperature range?
