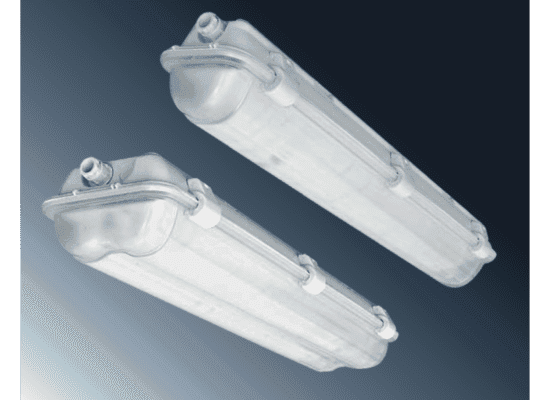

VIPET
Technical luminaire for engine rooms, machinery spaces, decks, car decks, and storage rooms. Polycarbonate construction with multiple mounting options. Available in 2 ft or 4 ft versions with optional 4-hour battery backup.
The VIPET is a technical luminaire engineered for harsh industrial environments including engine rooms, machinery spaces, vehicle decks, and storage areas. The fixture combines polycarbonate construction with injection-molded components to deliver durability and corrosion resistance in demanding applications.
Body: Injection-molded PS, ABS, or PC material in grey RAL 7035. Polyurethane foam sealing provides fixture protection and vibration dampening. Cover: Injection-molded optical cover in PS, SAN, or PC with smooth exterior surface for easy cleaning. Measured luminous efficacy: 70–78%. Clips: Polycarbonate material for fixture sealing and locking. Reflector: White-painted metal sheet with all electrical components mounted directly. Polished linear or parabolic aluminum reflectors available upon request.
APPLICATIONS
Primary use cases.
Engine Rooms
Designed for marine engine room environments with IP66 protection against water ingress and corrosive atmospheres.
Machinery Spaces
Suitable for industrial machinery spaces requiring reliable illumination in high-vibration environments.
Vehicle Decks
Applicable to car decks and vehicle storage areas with multiple mounting configurations.
Storage Rooms
General-purpose technical lighting for enclosed storage and utility spaces.
TECHNICAL DATA
Complete specifications and tolerances for the VIPET.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | TL45-217/232-V |
| Lamp Type | T8 |
| Number of Lamps | 2 |
| Wattage Options | 2×17 W or 2×32 W |
| Voltage Input | 120–277 V AC |
| Light Output | 2000–4000 lm (depending on lamp configuration) |
| Luminous Efficacy | 70–78% |
| IP Rating | IP66 |
| Body Material | PS, ABS, or PC (grey RAL 7035) |
| Cover Material | PS, SAN, or PC (transparent) |
| Reflector Material | White-painted metal sheet or polished aluminum (optional) |
| Sealing | Polyurethane foam |
| Available Lengths | 2 ft or 4 ft |
| Battery Backup | 4-hour option available |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
Underwriters Laboratories
Product certified to UL standards for North American electrical safety.
Canadian Standards Association
Product certified to CSA standards for Canadian market compliance.
Combined UL and CSA Certification
Dual certification for both US and Canadian electrical safety requirements.
