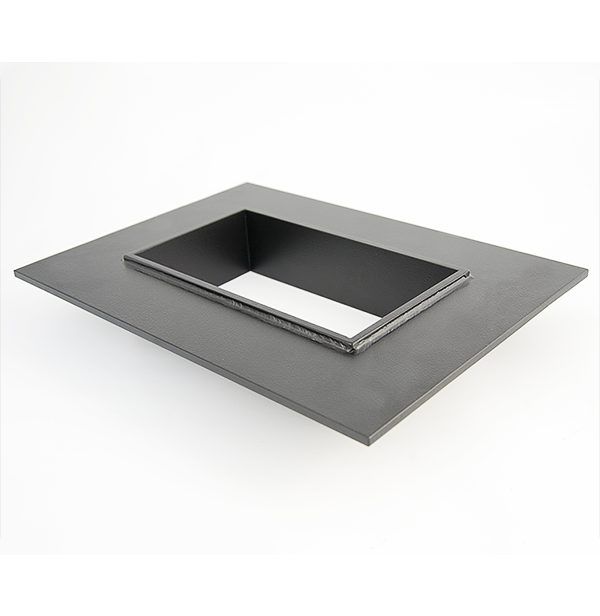

WRFF Cable Transit Frame – WallMax
Rectangular frame assembly for cable and pipe transit through wall openings and surfaces. Designed for marine and industrial manufacturing applications. Compatible with WMR series modules. Available in multiple materials and sizes to accommodate custom transit requirements.
The WRFF rectangular frame provides passage for cables through wall and surface openings in marine and industrial environments. These frames integrate with WMR series modules for complete cable transit solutions.
WRFF frames are engineered for pressure-resistant applications with configurable sizing and material selection. Standard options include primed steel, AISI 316 stainless steel, galvanized steel, and aluminum construction.
APPLICATIONS
Primary use cases.
Marine Industry
Cable transit solutions for vessel bulkhead penetrations and compartment separation.
Industrial Manufacturing
Wall-mounted cable management for production facilities and equipment enclosures.
TECHNICAL DATA
Complete specifications and tolerances for the WRFF Cable Transit Frame – WallMax.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 11XX XXXX |
| Wall Opening Range | 1×1 to 1×10 mm |
| Weight Range | 2.2 to 1,000 kg |
| Packing Space | 108×120 mm |
| Product Type | Rectangular Frame Transit |
| Material Options | Primed Steel, AISI 316, Galvanized Steel, Aluminum |
