WX 200 Plastic Frame – WallMax

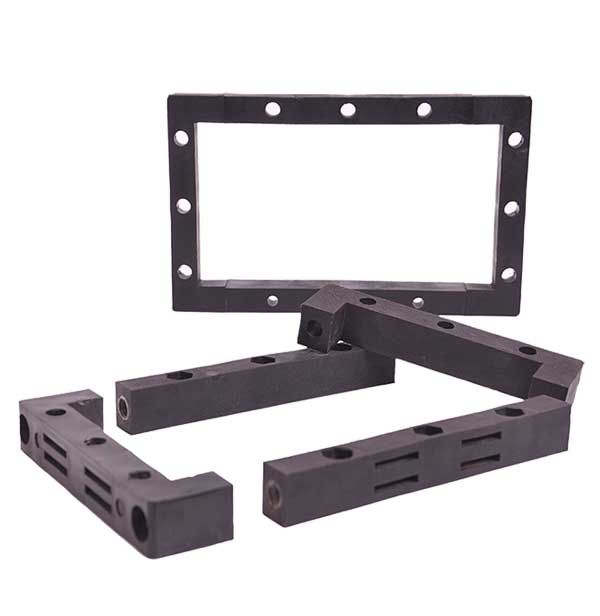

The WX 200 PA Plastic Frame is a lightweight mounting solution for cable transits. Constructed from PA 6.6 reinforced with 30% glass fill, this frame provides structural integrity while maintaining low weight. Bolted compression design enables mounting around existing installations without requiring expanders.
The WX 200 PA Plastic Frame serves as a mounting solution for cable and pipe transits in industrial applications. The frame material combines polyamide 6.6 with 30% glass reinforcement to balance weight reduction with mechanical strength.
Compression and sealing are achieved through bolted fastening, eliminating the need for expander mechanisms. The modular design accommodates retrofit installation around existing cable runs and infrastructure, providing flexibility in deployment scenarios.
Typical applications include data centers, industrial automation systems, electrical cabinets, and marine installations where lightweight, corrosion-resistant cable management is required.
APPLICATIONS
Primary use cases.
Data Centers
Cable transit mounting for high-density server and networking infrastructure.
Industrial Automation
Control cabinet and machinery cable management in manufacturing environments.
Marine Applications
Corrosion-resistant cable transits for vessel and offshore installations.
Electrical Cabinets
Retrofit-compatible frame for existing cabinet installations.
TECHNICAL DATA
Complete specifications and tolerances for the WX 200 Plastic Frame – WallMax.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 1306 2011 |
| Material | PA 6.6, 30% glass filled |
| Frame Dimensions | 262 × 160 mm |
| Packing Space | 220 × 120 mm |
| Weight | 0.61 kg |
| Product Type | Plastic Frame – Cable Transit |
| Fastening Method | Bolted compression |
