Xenon Searchlights – Francis FX300
300W xenon searchlight for marine and land-based security and safety applications. Delivers 3,480 m effective range with immediate full brilliance and instant re-strike capability. IP66-rated housing with marine-grade stainless steel construction.

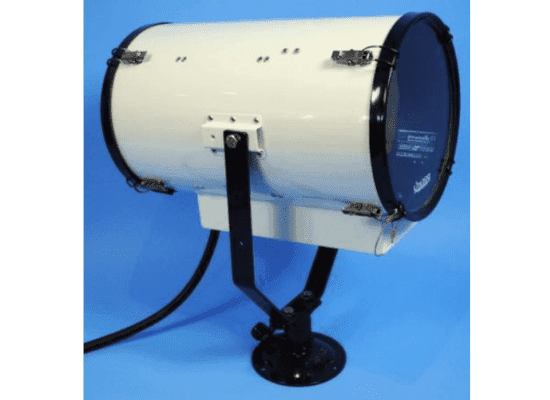

The Francis FX300 is a 300W xenon searchlight engineered for demanding operational environments on land and sea. The unit achieves full lamp brilliance immediately upon switch activation and requires no cooling period for re-strike, enabling rapid response in collision avoidance and man-overboard scenarios.
Construction features a parabolic aluminum reflector, toughened front glass, and marine-grade stainless steel housing. The searchlight delivers a 3,480 m effective range and includes a barrel-mounted heater for thermal management. Pan rotation capability extends to 450°. Remote focus control is available as an optional upgrade.
APPLICATIONS
Primary use cases.
Marine Safety
Collision avoidance lighting and man-overboard search operations on commercial and military vessels.
Security and Surveillance
Long-range perimeter illumination for port facilities, coastal installations, and land-based security applications.
TECHNICAL DATA
Complete specifications and tolerances for the Xenon Searchlights – Francis FX300.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A2491 / A6080 |
| Power Output | 300 W |
| Voltage Input | 115 V / 240 V AC |
| Lamp Life | 600 hrs |
| Effective Range | 3,480 m |
| Housing Material | Marine-grade stainless steel |
| Reflector | Parabolic aluminum |
| Front Element | Toughened glass |
| Pan Rotation | 450° |
| IP Rating (Head) | IP66 |
| IP Rating (PSU) | IP44 |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66 / IP44
Searchlight head rated IP66 (dust and water jet protection). Power supply unit rated IP44 (splash protection).
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the warm-up time for the FX300?
Can the searchlight be re-ignited without cooling?
Is remote focus control included?
What voltage options are available?
What is the expected lamp service life?
Are custom dimensions available?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
